363TSM1 ThinWeigh Compression Weigh Module
In stock
SKU
363TSM1

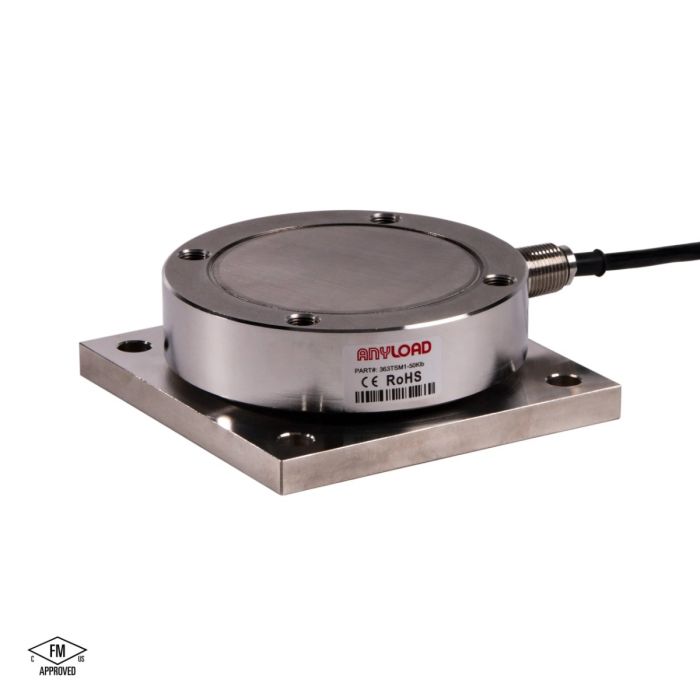

The 363TSM1 ThinWeigh™ leads the industry as an integrated compression weigh module that is high performance and ultra-low-profile, ideally suited for tank, hopper, vessel weighing, and more.
Summary Feature
- High Capacity Ultra Low Profile Mount
- Ideally suited for tank, hopper and vessel weighing
- 17-4 PH Stainless Steel
- Hermetically Sealed construction to IP68/IP69K
Specification
| Rated Capacities | 500kg/1Klb, 1.2t/2.5Klb, 2.5t/5Klb, 5t/10Klb, 12t/25Klb, 25t/50Klb, 50t/100Klb, 100t/200Klb |
| Full Scale Output | 3mV/V ± 0.25% |
| Zero Balance | Cap.≤ 1.2t/2.5Klb: ≤ ±0.04 mV/V; Cap.≥ 2.5t/5Klb: ≤ ±0.02 mV/V |
| Non-linearity | Cap.<1.2t/2.5Klb: < ± 0.05%; Cap.=2.5t-12t/5Klb-25Klb: < ± 0.1% or < ± 0.3%; Cap.=25t/50Klb: < ± 0.3% |
| Repeatability | < ± 0.05% |
| Hysteresis Error | Cap.<1.2t/2.5Klb: < ± 0.05%; Cap.=2.5t-12t/5Klb-25Klb: < ± 0.1% or < ± 0.3%; Cap.=25t/50Klb: < ± 0.3% |
| Creep in 30 minutes | < ± 0.05% |
| Input Resistance | 700Ω ± 10Ω |
| Output Resistance | 700Ω ± 5Ω |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2GΩ (50V DC) |
| Compensated Temperature Range | –10°C to 50°C/14°F to 122°F |
| Thermal Expansion / Contraction or Minor Misalignment | 500kg-5t/1Klb-10Klb: 2mm; 12t-25t/25Klb-50Klb: 3mm |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Lift Protection | 50% of full scale |
| Side Protection | 50% of full scale |
| Seal Type | Welded seal |
| IP Rating | IP68/IP69K |
