480 Series
480/482 Legend® Series Digital Weight Indicator
In stock
SKU
480-482-Legend

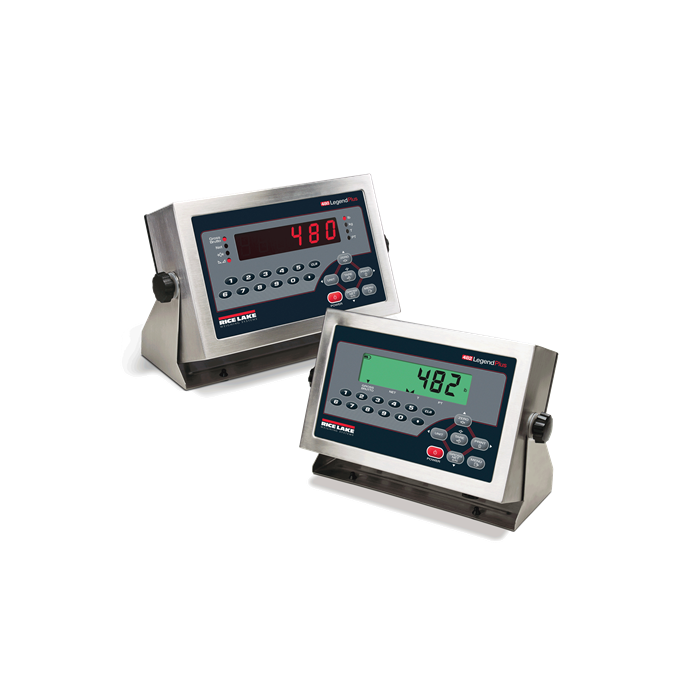

480/482 Digital Weight Indicator: Value and Performance Redefined
With NEMA Type 4X, stainless steel enclosure and advanced gasket system, the industrial-strength Legend Series is built for dirty, wet environments and demanding workplaces, inside or out. Choose between large, ultra-bright LED or LCD 0.8-inch displays with 6-digits and sharp contrast for superior display visibility.
Summary Feature
- LED display (480)
- LCD backlit display (482)
- Time and date, battery backed
- Local/remote operation
Main Features
- LED display (480)
- LCD backlit display (482)
- Time and date, battery backed
- Local/remote operation
- Numeric keypad (480 Plus/482 Plus)
- Keyed entries for setpoint values (480 Plus/482 Plus)
- Two independent serial ports
- NEMA Type 4X/IP66 stainless steel washdown enclosure
- Programmable ticket formats for gross, net, accumulator and setpoints
- Five continuous stream formats
- Adapter filter or rolling average filter
- Operator functions through menu for audit trail, preset tare, unit ID, accumulator, time and date, setpoints, communications and print formats
- Eight setpoints, sequenced batch engine
- Configurable with Revolution® software
Communication Interfaces
| Part # | Description |
|---|---|
| 131340 | Bracket,Mounting Assy for Option Modules in 480 Indicator |
| 131341 | Ind OPT, Analog Output 480, 0-10VDC, 4-20Ma |
| 131342 | Ind OPT, Relay 480 2 Digital Inputs, 4 Dry contact relays |
| 165379 | Cable,480 Flash Update Connects into J14 via RS232. |
| 151100 | Ind Opt,A/D Sealing Kit Cover for A/D on 480 Indicator |
| 151099 | Panel,Mount Option 480/680 Indicator,Gasketed Non-NEMA Seal. |
| 83564 | Overlay,Clear Protective Window with Adhesive Edge, Package of Five Each, IQ+355, 320IS, 420, CW90 |
| 223864 | Knob, Star M6x1.0 304 SST |
| 119201 | LIT,Manual 480 Technical 480 Legend Series Technical Manual |
| 165124 | LIT,Manual 482 Technical 482 Legend Series Technical Manual |
