Weigh Beams

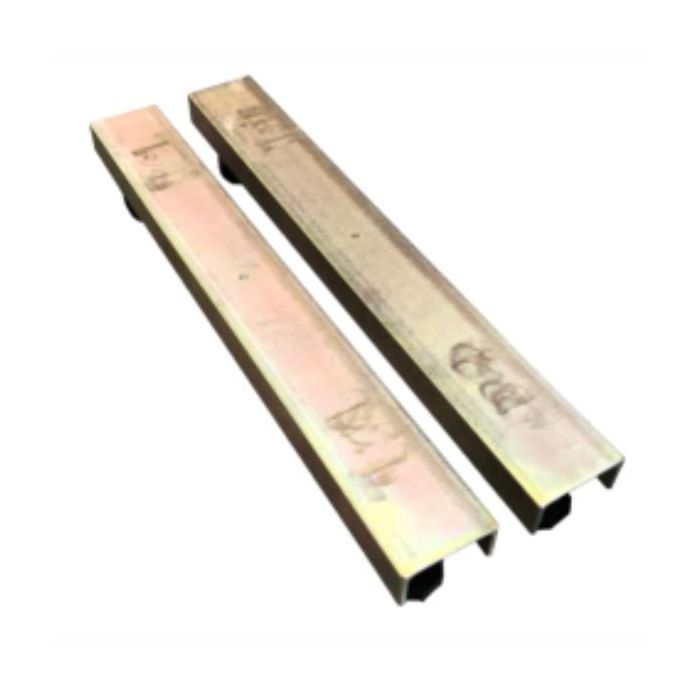

AM2406 Weigh Beams
In stock
SKU
AM2406
Designed for Industrial Use. Build with ease of operation due to the design of the varied feet for varied applications. The Associated Scale Service build Weigh Beams have been around for more than 25 years.
Summary Feature
- Standard Size 1200mm.x 100mm per Beam
- Custom sizes welcome as all manufacturing is performed within the Asscociated Manufacturing's factory
- Material for beams
- Mild Steel Painted
- Optional Galvanized
- Load Cells ( 4 of )
- Tool Steel - ANYLOAD 563YH 1000kg (each load cell )
- Foot design
- Rectanglar shape for stability
- Construction of Poly euothene
- Weight Indicator can be specified dependant on requirements.
Specification
| Construction | Zinc Plated Mild Steel / Optional : Stainless Steel |
| Foot | Polyuretdane |
| Load Cell | 4x1000kg Anyload Load Cells 563YH / Optional : 564YS Stainless Steel Load Cells |
| Lengtd | VARIED Fom 400mm to 1500mm |
| Widtd (Per Beam) | 100mm |
| Capacity | 3000kg x 1kg (Custom Welcome) |
| Indicators | Option 1: Supply Weigh FR-230 - Power Adaptor Option 2: Supply Weigh FR-271 - Power Adaptor Option 3: Rice Lake 480 Series - 240VAC Power GPO
|
