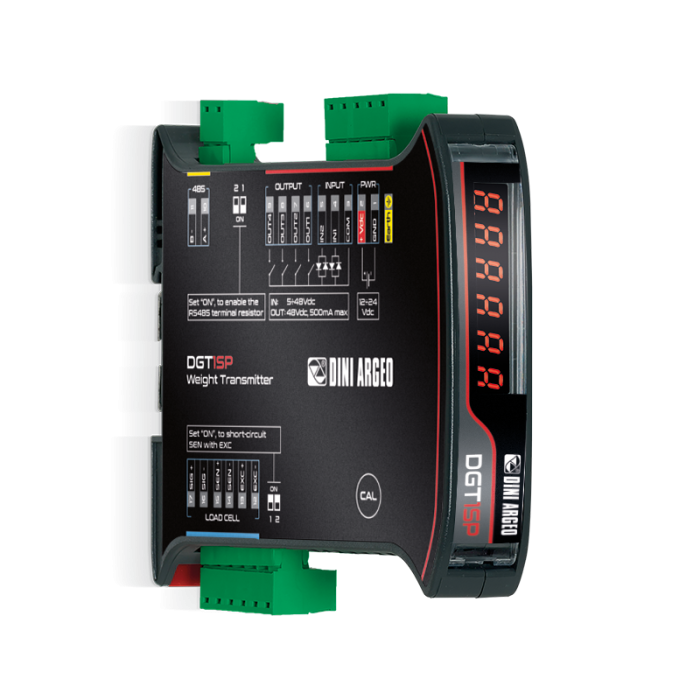

DGT1S Plus Multifunction, Digital Weight Transmitter/Indicator
In stock
SKU
DGT1S PLUS
Compact, multifunction weight transmitter/indicator, for panel mounting on DIN bar. It allows the direct reading and diagnostics of the connected weighing system. The wide range of available interfaces, makes it easy to integrate the weighing with any automation system.
Summary Feature
- Easy to use 5-key waterproof keyboard.
- Red LED display with 6 8-mm digits and 6 LEDs for showing active functions.
- Standard dimensions for mounting on DIN bar.
Main Features
- Number of scales/channels: 1
- Calibration:
- Theoretical (mV\V)
- With sample weights
- Via Web server - Conversion rate:
- Up to 400 Hz - Maximum number of load cells: Up to 16x350Ω
- Minimum sensitivity:
- High resolution 0,01 µV/d
- Legal for trade 0,3 µV/e - Number of legal-for-trade divisions:
Up to 10,000e or multi-field 2x3,000e - Load cell excitation voltage: 5 V
- Communication ports:
- 1 micro-USB port (device) (Mod. with fieldbus)
- 1 RS485 port (Mod. DGT1SP / DGT1SP-AN) - Communication protocols: Modbus RTU, ASCII or fieldbus
- Communication rate:
- On serial port up to 325 Hz
- On Fieldbus up to 16 Hz - PC programs for configuration: DiniTools
- Display: Red LED 8 mm, 6 characters
- Keyboard: 5-key mechanical
- Housing: ABS
- Power supply: 12÷24 Vdc, 5 W
- Operating temperature range:
- For internal use -20°C ÷ +60°C
- Approved -10°C ÷ +40°C - Max. humidity: 85%.
Technical Features
- Analogue output: 16 bit (Model DGT1SP-AN)
- 4÷20mA
- 0÷10Vdc - Digital outputs: n. 4 OUT, configurable
- Digital inputs: n. 2 IN, configurable
Communication Interfaces
| Code | Description |
| SETHDIN-1 | RS232 / RS485 / Ethernet converter. Modbus RTU / Modbus TCP/IP (if applicable). Connectable to all Dini Argeo weight indicators via the serial port. ABS housing for DIN rail. With PCB, screw terminals, plastic box and UL marked labels (if applicable). |
