Pallet Jack Scale

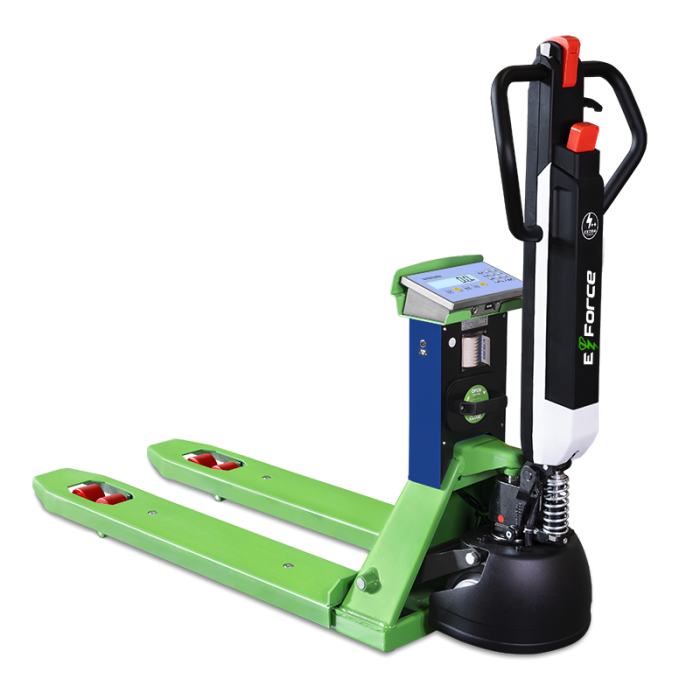

TPW "E-FORCE" Pallet Truck Scale with Dini Argeo Electric Traction Tiller
In stock
SKU
TPW EFORCE
Innovative pallet truck scale with electric traction tiller. TPW "E-FORCE" combines the benefits of electric pallet trucks with the precision of a Dini Argeo hand pallet truck scale.
Summary Feature
- Maximum lifting capacity: 1,250 kg
- Resolution: 0.5 kg
- Accuracy - internal use: 0.5 kg
- Approved according to CE certification (Directive 2014/31/EU)
Main Features
- Electric traction tiller features
- OLED display with configuration keyboard.
- Working autonomy: up to 8 h, depending on use, load and slope (3 to 5 h for standard use). Unlimited autonomy with the purchase of the optional additional battery code "E-PACK".
- Power supply: through removable rechargeable lithium-ion battery (optional fast recharge in 2 h).
- Charger included, recharge time about 8 h.
- Tiller with ergonomic handle, IP54.
- Stain-resistant rubber steering wheels.
- Maximum reachable speed: 5 km/h.
- Maximum slope: 5% (with load) - 15% (without load).
Communication Interfaces
| Code | Description |
| ALMEM-1 | (S1) Alibi memory (fiscal memory, max 120.000 weighs) for approved weight transmission to PC/PLC or data recording on MMC/USB. Built-in real time clock to print the date/time with PCB, screw terminal, plastic box and UL-marked labels. If applicable, it requires FW 05.00.02 or higher. Not compatible with weight repeaters. |
| WIFITPWLK-2 | (S1) Built-in WI-FI interface. For wireless connection (through access point) to the company computer system. |
| RF2G4 | (S1) Built-in 2.4 GHz radiofrequency module. Max. functioning distance in appropriate environmental and installation conditions: 45m indoors, 140m outdoors. Up to 39 configurable channels. (RF2G4 must be combined with another radio module). |
| BLTH-4 | (S1) Built-in bluetooth interface. For wireless connection of the scale to tablets, smartphones, laptops or barcode scanners. Attention: this interface is not suitable for Master-Slave systems. |
| OBRF2G4-USB | External 2.4 GHz radio frequency module, USB cable l=1m. Power supply directly from the USB port. Max. functioning distance, in appropriate environmental and installation conditions: 45 m indoors, 140 outdoors. 39 configurable channels. |
| CNFSERV | Custom-made printouts for DFW and DFWL series. NET price. |
