Double Ended Shear Beams

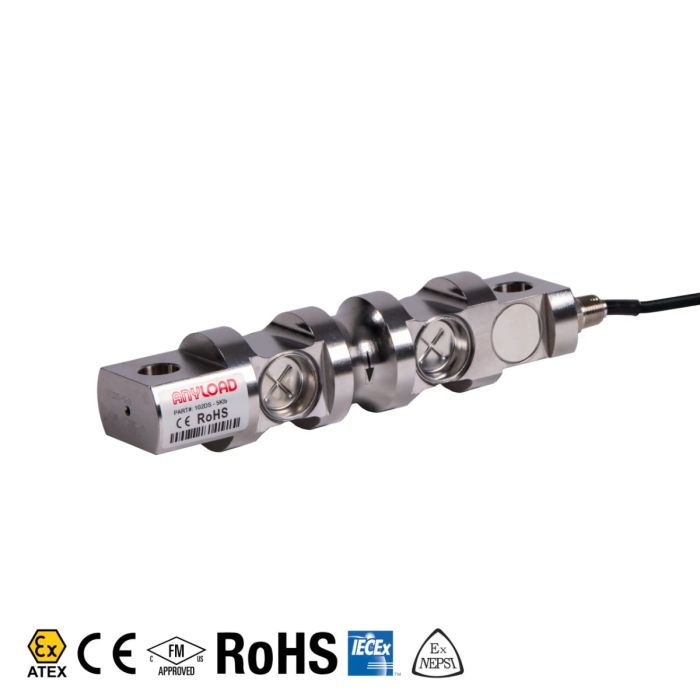

102DS Double Ended Beam Load Cell
In stock
SKU
102DS
The stainless steel IP68 class water- and corrosion-resistant double-ended center loading shear beam is a compact, robust, and cost-effective compression weighing solution for high-capacity weighing needs.
Summary Feature
- Material: Stainless Steel
- Rated Capacities: 5Klb, 10Klb, 15Klb, 20Klb, 30Klb, 40Klb, 50Klb, 60Klb, 75Klb, 100Klb, 150Klb, 200Klb
- Full Scale Output: 3mV/V ± 0.25%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP68
- CE, RoHS and Ex(NEPSI) certified
Specification
| Rated Capacities | 5Klb, 10Klb, 15Klb, 20Klb, 30Klb, 40Klb, 50Klb, 60Klb, 75Klb, 100Klb, 150Klb, 200Klb |
| Full Scale Output | 3mV/V ± 0.25% |
| Zero Balance | ± 0.02mV/V |
| Non-linearity | < ± 0.023% |
| Repeatability | < ± 0.017% |
| Hysteresis Error | < ± 0.023% |
| Creep in 30 minutes | < ± 0.023% |
| Input Resistance | 700Ω ± 10Ω |
| Output Resistance | 700Ω ± 5Ω |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2GΩ (50V DC) |
| Temperature Effect on Sensitivity | < ±0.0012% of Cn/k |
| Temperature Effect on Zero Balance | < ± 0.0040% of Cn/k |
| Compensated Temperature Range | –10°C to 50°C/14°F to 122°F |
| Service Temperature Range | -30°C to 70°C/-20°F to 160°F |
| Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Welded sealed |
| IP Rating | IP68 |
Interchangeable
| Manufacturer | Model |
| Coti Global | CG-9103 |
| Rice Lake | RL70000SS |
| Rice Lake | RL72019SS |
| Rice Lake | RL72020SS |
| Vishay Revere Transducers | 9103 |
| Mettler Toledo | SLD-530 |
