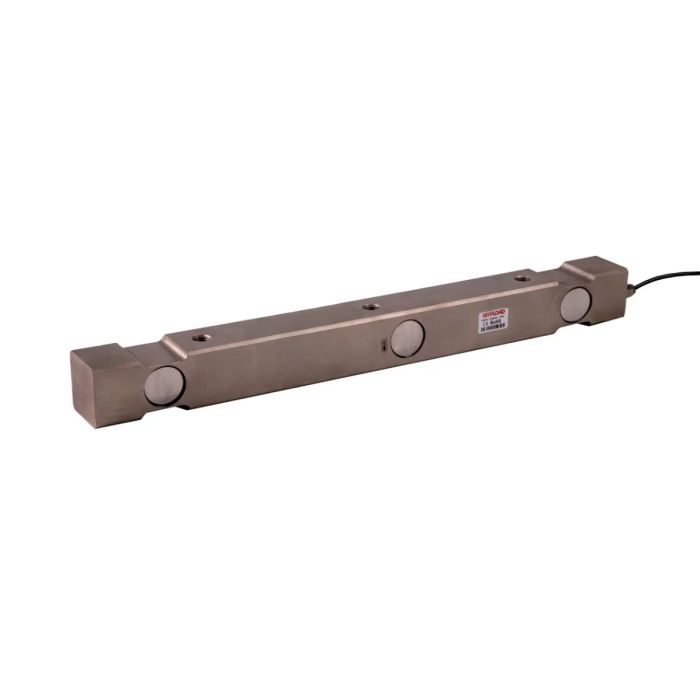

102MHML Double Ended Beam Load Cell
In stock
SKU
102MHML
The 102MHML is a heavy-duty medium-capacity double-ended beam load cell with IP67 water resistance. This model is particularly well-suited to onboard weighing and weighing-in-motion applications.
Summary Feature
- Material: Alloy steel
- Rated Capacity: 25Klb
- Full Scale Output: 2mV/V ± 0.25%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP67
- CE, RoHS and Ex (NEPSI) certified
Specification
| Rated Capacity | 25Klb |
| Full Scale Output | 2mV/V ± 0.25% |
| Zero Balance | ± 0.02mV/V |
| Non-linearity | < ± 0.030% |
| Repeatability | < ± 0.010% |
| Hysteresis Error | < ± 0.020% |
| Creep in 30 minutes | < ± 0.023% |
| Input Resistance | 750Ω ± 15Ω |
| Output Resistance | 700Ω ± 3Ω |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2GΩ (50V DC) |
| Temperature Effect on Sensitivity | < ±0.0012% of Cn/k |
| Temperature Effect on Zero Balance | < ± 0.0040% of Cn/k |
| Compensated Temperature Range | –10°C to 50°C/14°F to 122°F |
| Service Temperature Range | –30°C to 70°C/-20°F to 160°F |
| Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Welded sealed |
| IP Rating | IP67 |
Interchangeable
| Manufacturer | Model |
| Coti Global | CG-SLS* |
| Massload | ML1100 |
