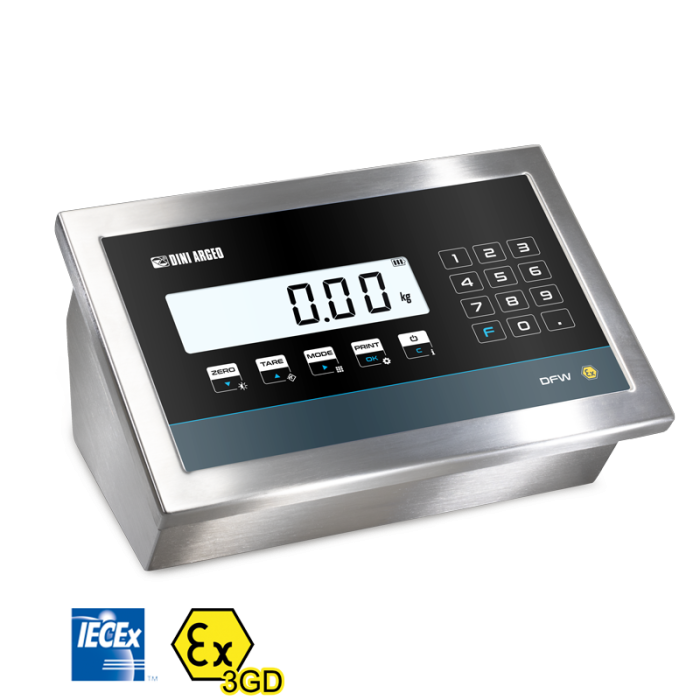

DFW-IECEX3GD: IECEx Weight Indicator For Ex 2 & 22 Zones
In stock
SKU
DFW-IECEX3GD
Weight indicator for Ex areas classified as hazardous.
Suitable to realize weighing, dosing and automation systems. CE-M approvable (OIML R-76 / EN 45501).
Summary Feature
- IECEx certification.
- New enclosure with screwless front closure for easy cleaning of the indicator.
- Satin IP68 stainless steel enclosure.
- Internal resolution up to 3.000.000 points.
Main Features
- IECEx certification.
- New enclosure with screwless front closure for easy cleaning of the indicator.
- PG7 and PG9 cable glands with adapters for 4 to 7 mm and 7 to 10 mm cable routing. Equipped with anti-friction system that does not require additional external cable fixing, as required by the IECEx scheme and ATEX directives.
- Available in specific version for direct connection to load cells installed in zone 1/21 and 0/20.
Technical Features
- 17-key high thickness waterproof keyboard.
- LCD display with backlight as standard with 6 25 mm digits.
- Satin IP68 stainless steel enclosure.
- Suitable for use on the table.
- Dimensions: 280x143x185mm.
- Up to 10.000e or 3 x 3000e @ 0,3 µV/d OIML approved version and CE-M legal for trade.
- Up to 1.000.000 displayable divisions for internal factory use.
- Up to 8 signal linearisation points with DINITOOLS (3 from the keyboard).
- Internal resolution up to 3.000.000 points.
- 24-bit sigma-delta A/D converter, up to 200 conv./sec. with automatic frequency selection.
- Board protection case inside the box.
- Calibration and digital Set-Up from the keyboard.
- Instrument management and configuration from PC with DINITOOLS.
- 4 channels (for single weighing system).
- Power supply from 110-240Vac line or 12-24 Vdc Max. 25.2W (optional power cable).
- Connection with up to 8 load cells of 350 Ohm.
Digital Input Output
| Code | Description |
| DFIO3GD-1 | (S1) ATEX 3GD built-in 2 IN/6 OUT interface (requires FW 05.05.00 or higher). |
Columns Supports Visors
| Code | Description |
| ETHD | (S1) Built-in Ethernet interface. Speed from 10 to 100 Mbps, TCP, UDP, IP, ARP, ICMP, Ethernet Mac protocols. |
| ALMEM-1 | (S1) Alibi memory (fiscal memory, max 120.000 weighs) for approved weight transmission to PC/PLC or data recording on MMC/USB. Built-in real time clock to print the date/time with PCB, screw terminal, plastic box and UL-marked labels. If applicable, it requires FW 05.00.02 or higher. Not compatible with weight repeaters. |
| RS485C | (S1) Built-in RS485 interface (mounting and cable gland excluded). |
