563YS-EX Single Ended Beam Load Cell
In stock
SKU
563YS-EX

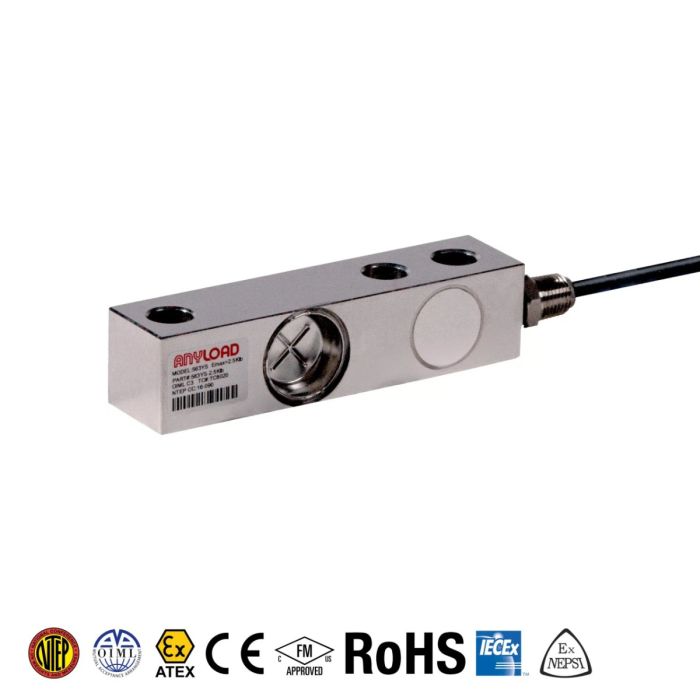

The 563YS-EX is a single-ended beam load cell with stainless steel weld sealed IP68-class water and corrosion resistance.
Summary Feature
- Material: Stainless steel 250kg, 500kg, 1t, 2t, 3t, 5t, 10t
- Full Scale Output: 2mV/V ± 0.25%
- IP Rating: IP68
- OIML: 1KLb-5Klb & 500kg-2t: OIML MAA C5, Y=26000 10Klb-20Klb & 3t-10t: OIML MAA C6, Y=8500;
- CE, RoHS and Ex(NEPSI) certified
Downloads
Specification
| Rated Capacities | 500lb, 1Klb, 2.5Klb, 4Klb, SE5Klb, 5Klb, 10Klb, 15Klb, 20Klb, 250kg, 500kg, 1t, 2t, 3t, 5t, 10t |
| Full Scale Output | 2mV/V ± 0.25% |
| Zero Balance | ± 0.02mV/V |
| Non-linearity | < ± 0.023% |
| Repeatability | < ± 0.023% |
| Hysteresis Error | < ± 0.023% |
| Creep in 30 minutes | < ± 0.030% |
| Input Resistance | 350Ω ± 7Ω |
| Output Resistance | 350Ω ± 3Ω |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2GΩ (50V DC) |
| Temperature Effect on Sensitivity | < ±0.0012% of Cn/k |
| Temperature Effect on Zero Balance | < ± 0.0040% of Cn/k |
| Compensated Temperature Range | –10°C to 50°C/14°F to 122°F |
| Service Temperature Range | –30°C to 70°C/-20°F to 160°F |
| Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Welded seal |
| IP Rating | IP68 |
Interchangeable
| Manufacturer | Model |
| Cardinal | TB* |
| Coti Global | CG-23-SSW-02 |
| Rice Lake | RL35082 |
| Rice Lake | RLHTO |
| Vishay Sensortronics | 65083S |
| Vishay Tedea-Huntleigh | 3510-kg |
