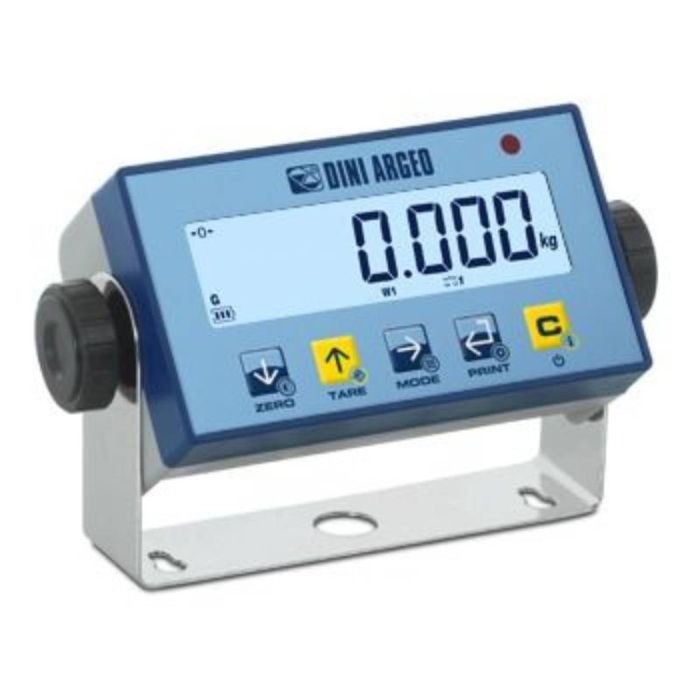

DFWLB: Multifunction IP68 Weight Indicator for Industry
In stock
SKU
DFWLB
Digital weight indicator for industrial environments, easy to install and use. The IP68 protection degree and the built-in long life battery make it particularly suitable for automotive and mobile weighing applications. Standard fitted with a support bracket with adjustable inclination.
Summary Feature
- Economical High-Quality Weight Indicator
- ABS Housing (IP68)
- Power Adaptor; Internal Rechargeable Battery
- Standard with 2 x RS232 Port
- Multi-Function with options
- Use up to 8x 350 Ohm Load Cells
Main Features
- 5-key functional waterproof keypad.
- Backlit 25mm LCD display with 6 high contrast digits with icons for showing the active functions.
- Easy to clean ABS IP68 case, resistant to harsh and corrosive environments.
- Suitable for use on the table, column, or wall.
- Fitted with fixing bracket with adjustable inclination.
- A/D 24 bit, 4 channel converter, max. 200 conv./sec. autoselect, and up to 8 signal linearisation points.
- Up to 10.000e or multirange 3 x 3000e @ 0,3 µV/e in CE-M approved versions for legal for trade use.
- Up to 1.000.000 displayable divisions with internal resolution up to 3.000.000 points.
- Connection with up to 8 load cells with input resistance equal to 350 Ohm or up to 16 cells of 700 Ohm each.
- Digital calibration and Set-Up from keypad or from PC through DINITOOLS.
- Power supply through built-in rechargeable battery, with 60h operating time, and fitted with external battery charger (to not use as power adaptor).
Technical Features
- The user can select the operating modes directly using the dedicated key*:
- High resolution display x 10
- Precision weighing with temporary recalibration via a sample weight (for internal factory use)
- Net/Gross
- Lb to Kg converter
- Free conversion factor (for meter and litre counters etc.)
- Weight totalizer
- Formulizer
- +/- controller with quick target and threshold input
- Percentage weighing
- Piece counter
- Hold
The “alibi memory” function is available in combination with the required operating mode and it is activated automatically when installing the relevant optional board. - Optional functions:
- PEAK, detection of weight peaks (code DFWPK)
- Newton to Kg converter (code DFWPK) - Access to the user menu is gained using the dedicated key* to adjust the weighing filter, date and time, setpoint and tare weight, which the user can access by entering a programmable access password.
Communication Interfaces
| Code | Description |
| RSCBUSB-1 | USB PC/RS232 converter cable, l=1,5m. USB/RJ11 connector. |
| RSCBUSB485 | USB cable converter PC/RS485, l=1,5m. With metallic PG9 cable gland. To be combined with an indicator fitted with optional or standard RS485 output. |
| BLTH-4 | (S1) Built-in bluetooth interface. For wireless connection of the scale to tablets, smartphones, laptops or barcode scanners. Attention: this interface is not suitable for Master-Slave systems. |
| RF2G4-TTL | (S1) Integrated 2.4 GHz radio frequency module, complete of TTL port. Max. functioning distance in appropriate environmental and installation conditions: 45m indoors, 140m outdoors. Up to 39 configurable channels. (RF2G4-TTL must be combined with another radio module). |
| ALMEM-1 | (S1) Alibi memory (fiscal memory, max 120.000 weighs) for approved weight transmission to PC/PLC or data recording on MMC/USB. Built-in real time clock to print the date/time with PCB, screw terminal, plastic box and UL-marked labels. If applicable, it requires FW 05.00.02 or higher. Not compatible with weight repeaters. |
| RS485C | (S1) Built-in RS485 interface (mounting and cable gland excluded). |
Columns Supports Visors
| Code | Description |
| CSP38I-1 | AISI 304 stainless steel column 450x450mm, h=917mm, Ø 38mm. For the indicators of the DINI ARGEO and SCALE HOUSE range. |
| CSP38 | Stainless steel column 450x450mm, h=917, Ø 38mm. Painted steel base. For the indicators of the DINI ARGEO and SCALE HOUSE range. |
| CSP38D | Stainless steel column 350x350mm, h=750mm. Painted steel base. For the indicators of the DINI ARGEO and SCALE HOUSE range. |
