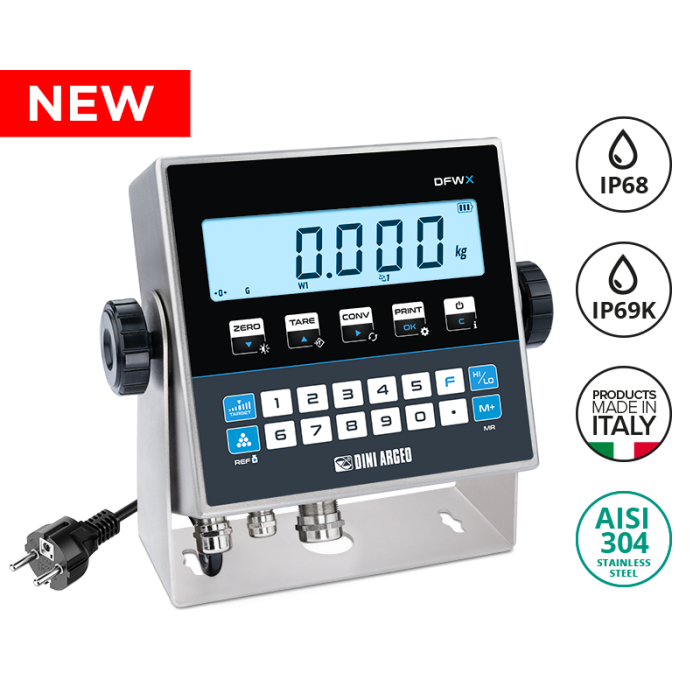

DFWX: IP68/IP69k Multifunction Weight Indicator
In stock
SKU
DFWX
High performance, compact and robust IP68/IP69K stainless steel weight indicator with interactive backlit RGB display.
Summary Feature
- IP68 and 69k protection rating
- 6-digit 25mm LCD display with RGB backlighting
- AISI 304 stainless steel case
- Versatile weight gauge suitable for advanced industrial applications.
Downloads
Main Features
- AISI 304 stainless steel case
- IP68 and 69k protection rating
- 6-digit 25mm LCD display with RGB backlighting (7 selectable colors)
- Configurable light intensity
- 21-key numeric-functional keypad
- Swivel-tilt support bracket with mounting holes.
- Compact size: 170 x 200 x 70 mm.
- Configurable power-saving functions, to minimize power consumption
- Connectable to up to 16 load cells with 350Ω output resistance.
- Single-range, multi-range or multi-interval approvable, Class III or IIII, up to 10,000e per range. Minimum signal 0.3µV/e.
- Calibration up to Max. 800,000 divisions, for internal factory use; Minimum signal 0.01µV/e.
- Internal resolution up to 3,000,000 points, ideal for high resolution applications and accurate part counting.
- Up to 8 points of signal linearization.
- Digital calibration and set-up from keyboard or PC with DINITOOLS.
- Functions for silo and tank calibration
- Weighing recording approved for data exchange with PC and Management, via Alibi Memory option or D-LEGAL PC software.
Digital Input Output
| Code | Description | |
 |
DFIO3V3 | (S1) Board for indoor installation with 2 inputs and 6 opto-isolated digital outputs. Can be combined with CB10P cable for management of external automations. |
 |
CB10P | (S2) Shielded cable 10x0.25 mm² (suitable for Ex zones). PVC sheathing, 7.5mm diameter. Operating temperature: -25 / +70 °C (fixed installation). Minimum bending radius >/= 8 x O.D. €/m. Maximum length that can be ordered: 100 m or multiples. |
