Compression Load Cell
266AH Compression Load Cell
In stock
SKU
266AH

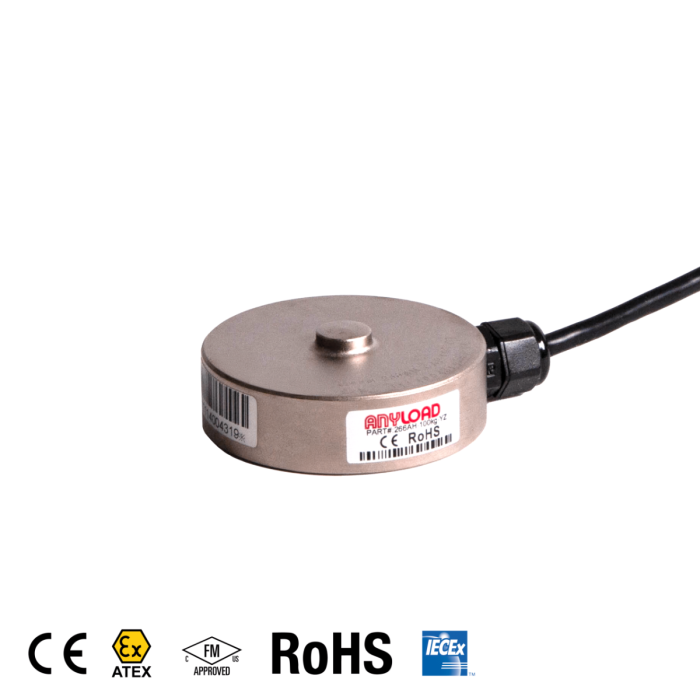

The ANYLOAD 266AH Compression Load Cell enclosure is nickel-plated weld-sealed alloy steel, and protection-rated IP67. This versatile load cell is available in capacities from 100kg to 30t.
Summary Feature
- Material: Alloy steel
- Rated Capacities: 100kg, 200kg, 300kg, 500kg, 1t, 2t, 5t, 10t, 20t, 30t
- Full Scale Output: 2mV/V ± 1%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP67
- CE and RoHS certified
Specification
| Rated Capacity | 100kg, 200kg, 300kg, 500kg, 1t, 2t |
| Full Scale Output | 2mV/V ± 1% |
| Zero Balance | ± 0.02mV/V |
| Non-linearity | < ± 0.2% |
| Repeatability | < ± 0.03% |
| Hysteresis Error | < ± 0.1% |
| Creep in 30 minutes | < ± 0.1% |
| Input Resistance | 400Ω ± 20Ω |
| Output Resistance | 350Ω ± 3Ω |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2GΩ (50V DC) |
| Temperature Effect on Sensitivity | < ±0.0023% of Cn/k |
| Temperature Effect on Zero Balance | < ± 0.0120% of Cn/k |
| Nominal Temperature Range | –10°C to 40°C/14°F to 104°F |
| Service Temperature Range | -30°C to 70°C/-20°F to 160°F |
| Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Welded seal |
| IP Rating | IP67 |
