Compression Load Cell

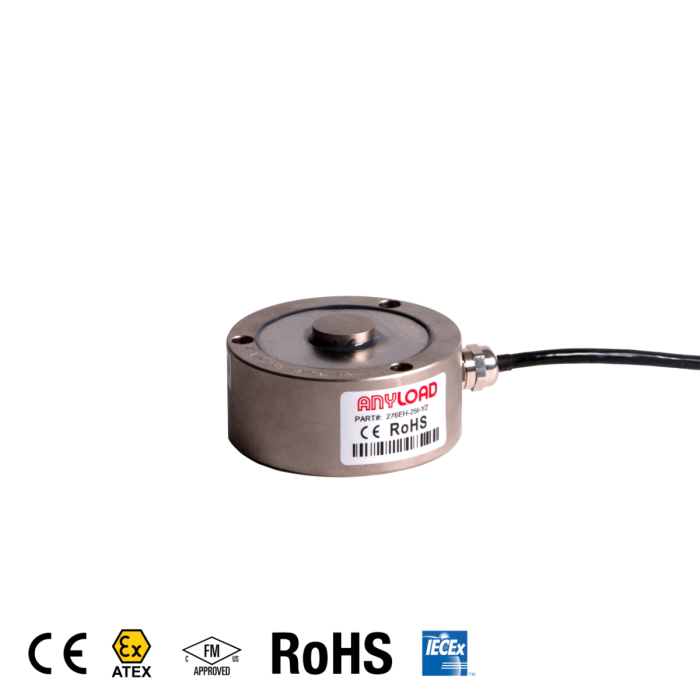

276EH Compression Load Cell
In stock
SKU
276EH
The ANYLOAD 276EH compression load cell features an IP67 alloy steel enclosure with a patented design. The 276EH is ideal for high-compression weighing. Its mounting cap is included.
Summary Feature
- Material: Alloy steel
- Rated Capacities: 5t, 10t, 25t, 50t, 100t
- Full Scale Output: 2.5mV/V ± 10%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP67
Specification
| Rated Capacity | 5t, 10t, 25t, 50t, 100t |
| Full Scale Output | 2.5mV/V ± 10% |
| Zero Balance | ± 0.02mV/V |
| Non-linearity | < ± 0.32% |
| Repeatability | < ± 0.050% |
| Hysteresis Error | < ± 0.32% |
| Creep in 30 minutes | < ± 0.10% |
| Input Resistance | 400Ω ± 20Ω |
| Output Resistance | 350Ω ± 3Ω |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2GΩ (50V DC) |
| Temperature Effect on Sensitivity | < ±0.0046% of Cn/k |
| Temperature Effect on Zero Balance | < ± 0.0160% of Cn/k |
| Compensated Temperature Range | –10°C to 50°C/14°F to 122°F |
| Service Temperature Range | -30°C to 70°C/-20°F to 160°F |
| Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Environmentally sealed |
| IP Rating | IP67 |
