Compression Load Cell

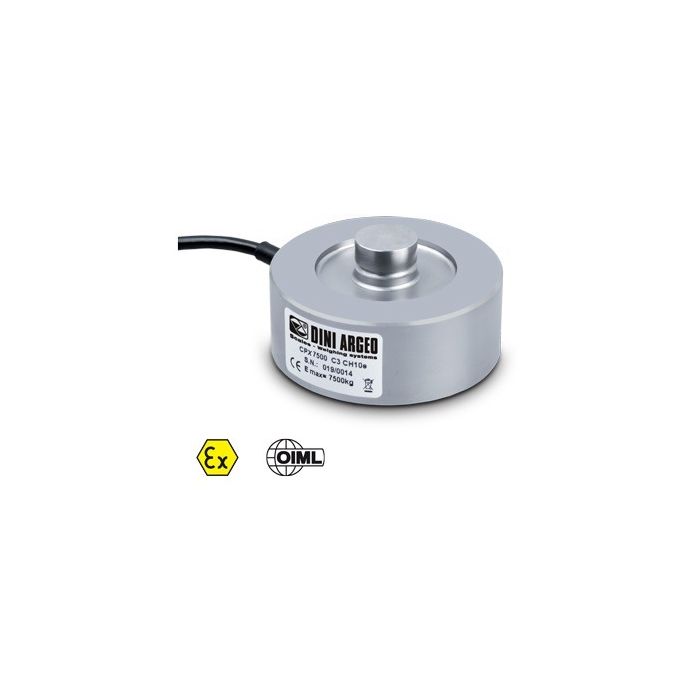

CPX Series Low Profile Compression Load Cell
In stock
SKU
CPX SERIES
Stainless steel compression load cells suitable for weighing tanks and hoppers with the relevant accessories.
Summary Feature
- Capacities from 250 to 100000 kg
- OIML CE-M C3 approved, from 2500 to 12500 kg
- Low profile
- Great resistance to lateral forces
- Stainless steel construction
- IP68 protection, IP69k upon request
- Shielded connection cable
Specification
| Minimum load cell verification interval | Vmin = EMax / 10000 |
| Full Scale Output | 2mV/V +/- 0,5% |
| Non-Repeatability | 0,01% F.S. |
| Combined Error | 0,05% |
| Temperature effect on zero | 0,02% / 10°C |
| Temperature effect on full scale output | 0,02% / 10°C |
| Compensated Temperature Range | -10°C/+40°C |
| Operating Temperature Range | -20°C/+60°C |
| Creep error after 30 minutes | 0,02% F.S. |
| Maximum tolerated excitation voltage | 15 Vdc |
| Input Resistance | 750 ± 10 Ohm |
| Output Resistance | 700 ± 5 Ohm |
| Zero Balance | +/-1% F.S. |
| Insulation Resistance | >5000 MOhm |
| Safe Overload | 120% F.S. |
| 4-wire shielded cable, 5 mm diameter | - 5 m long for CPX 250...5000 versions; - 10 m long for CPX 7500...100000 versions. |
