3590EGTB8 Touch: 8-Inch Panel Touchscreen Weight Indicator
In stock
SKU
3590EGTB8

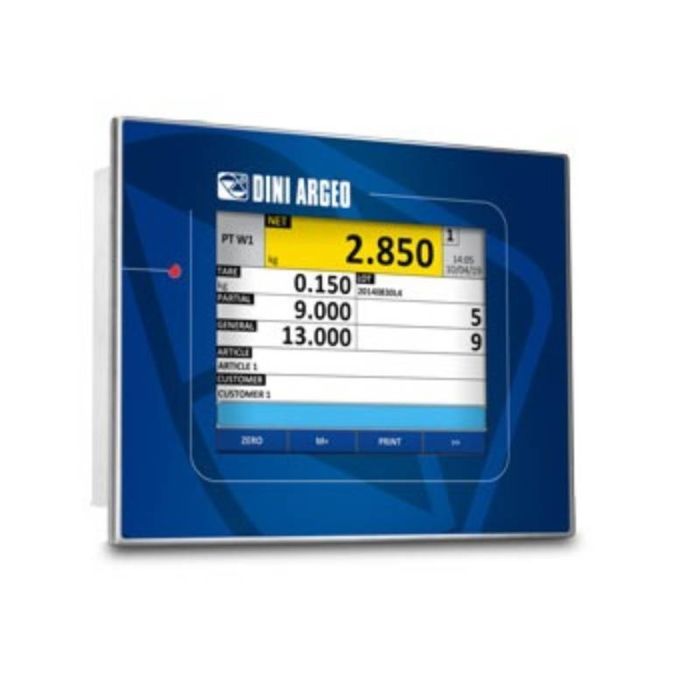

Panel digital weight indicator with a big 8" touch screen display, stainless steel front panel and standard Ethernet port. The 3590EGTB8 indicator has an area for the development of specific application programs, integrated debuggers and tools for PC programming.
Summary Feature
- High-performance multifunctional indicator (IP68)
- Panel Mount Stainless Steel Housing
- 3 serial ports with Transmission protocols, Modbus RTU
- Completely configurable printouts
- 8 Touch Screen Display
- Multiple functions as options
- The wide range of connectable accessories
Downloads
Downloads
Downloads
Downloads
Downloads
Downloads
Downloads
Main Features
- Backlit graphic display with touch screen technology, lxh= 160x120 mm size. Indicated for use with gloves.
- Multilanguage software, available in Italian, English, German, French and Spanish. Possibility to insert your own translation thanks to the new software "CUSTOM LANGUAGE TOOL", downloadable from the DOWNLOAD area of this card.
- Equipped with waterproof gasket.
- IP65 frontal protection.
- Stainless steel frontal panel, with 8 fixing points for maximum protection against water and dust.
- Overall dimensions: 280x220x80 mm.
- Drilling template: 188x252 mm.
- 3 way screen cross light.
- Real time clock and permanent data storage.
- Fitted alibi memory, integrated on the motherboard.
- Slot for built-in micro SD for recording logos (upon request).
- Functions available with DINITOOLS utility, also from remote (web server mode via internet).
- Configuration, data entry and print formatting.
- Recording and filing of all the information on PC.
- Complete retrieval of the configuration.
- Instrument calibration with numeric values.
- Customization of the screens.
- Development environment for customised programmes using a specific programming language. - 24-bit A/D converter, 4 channels, up to 3200 conv./sec. and up to 8 signal linearisation points.
- 4 independent analogue channels (up to 2 in the E-AF03 version) for reading of the weight.
- Connection with up to 16 analogue load cells of 350 Ohm (45 load cells of 1000 Ohm) and with the main digital load cells available on the market (mod. E-AF03).
- Management of the most common digital load cells for weighbridges (with AF03GT firmware), also for CE-M approved applications.
- Up to 10.000e OIML or 3 x 3000e @ 0,3 µV/e CE-M legal for trade.
- Up to 1.000.000 displayable divisions for internal factory use, with internal resolution up to 3.000.000 points.
- Connectable to printers and labellers with free programmation of the printout formats.
- 12-24 Vdc power supply.
IO Section
- 1 Internal standard ETHERNET port (excludes standard serial port), for connection to company computer system.
- 1 USB port for saving data on a memory stick as standard (memory stick not included).
- 2 RS232 serial ports on terminals, for connection to printer, PC, radio module and optional interfaces.
- 1 RS232/RS485 serial port on terminals, for connection to repeater, remote scale, badge reader or digital load cells.
- Serial keyboard emulation input, for connection to barcode/badge readers or external PC keyboard, via cable with mini DIN connector (optional).
- 4 opto-isolated outputs as standard, expandable up to 16 with optional board.
- 2 opto-isolated inputs as standard, expandable up to 8 with optional board.
- External Profibus or Modbus/TCP interface (optional), for automation management.
- Interface Profinet, Ethernet/IP, EtherCAT, CANopen or external DeviceNet (optional, only with stand programme
Main Certification
- EU Type Examination Certificate (45501:2015)
- OIML R76
- OIML R-51 - MID automatic checkweighers (require "CHECK" firmware option)
- OIML R-61 - MID automatic filling machines (require "BATCH1-R61" firmware option)
- OIML R134 (AF09)
- Australian legal for trade certificate of approval (NMI S788)
Communication Interfaces
| Code | Description |
| OBRF2G4 | (S1) External 2.4 GHz radio module, cable l=3m. ABS IP65 protecting box, 3 m cable, power supply from weight indicator. Max. distance, in appropriate environmental and installation conditions: 45 m indoors, 140m outdoors. 39 configurable channels. |
| OBRF2G4-USB | External 2.4 GHz radio frequency module, USB cable l=1m. Power supply directly from the USB port. Max. functioning distance, in appropriate environmental and installation conditions: 45 m indoors, 140 outdoors. 39 configurable channels. |
| SETHDIN-1 | RS232 / RS485 / Ethernet converter. Modbus RTU / Modbus TCP/IP (if applicable). Connectable to all Dini Argeo weight indicators via the serial port. ABS housing for DIN rail. With PCB, screw terminals, plastic box and UL marked labels (if applicable). |
| SETHNET | (S1) External RS232/Ethernet interface. Suitable for multi-location weighbridge systems networking. Compatible only with the AF03 software. |
| PROFI232-1 | External RS232/RS485/PROFIBUS interface for DIN bar. Connectable to the indicators with Profibus protocol with PCB, terminal blocks, plastic box and UL-marked labels (if applicable). |
| BLTH-4 | (S1) Built-in bluetooth interface. For wireless connection of the scale to tablets, smartphones, laptops or barcode scanners. Attention: this interface is not suitable for Master-Slave systems. |
| DAC16O-2 | (S1) Built-in optoisolated analog output, 0-4/20 mA, 0-10VDC (cable gland excluded). For DFW, 3590 and CPW indicators. Output -10/+10VDC upon request, only at time of order. NOTE: For 3590, IOEXPB option board is required, available depending on the model. |
| RS485OPTO | (S1) Built-in optoisolated RS485 interface (mounting and cable gland excluded). |
| RSCBUSB485 | USB cable converter PC/RS485, l=1,5m. With metallic PG9 cable gland. To be combined with an indicator fitted with optional or standard RS485 output. |
Digital Input Output
| Code | Description |
| IOEXPBE | (S1) Built-in board with 12 OUT and 6 IN (mounting and cable gland excluded). It includes expansion circuit of the power supply range of the indicator (8-40Vdc). NOT COMPATIBLE WITH 3590E4CH AND TPRXT. With UL marked PCB, Terminal block, plastic box and labels (if expected). Note: Accessory that can only be ordered in combination with a suitable weight indicator. |
