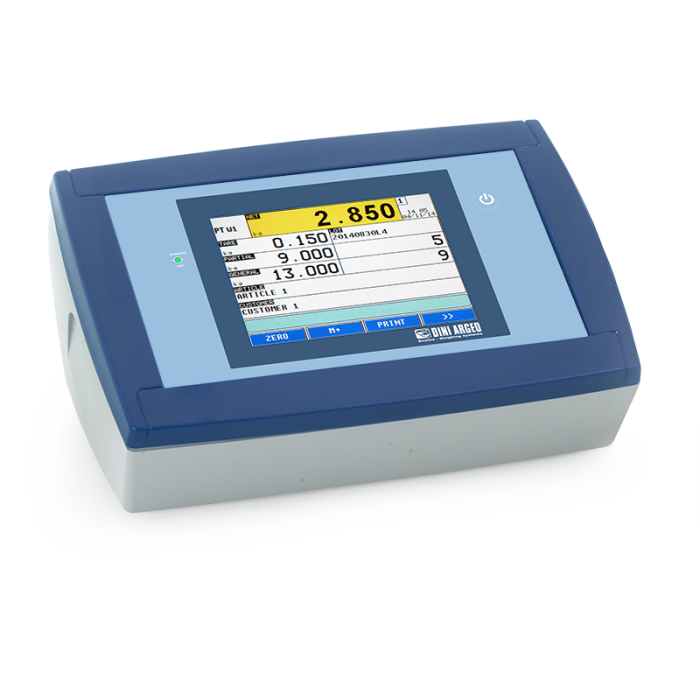

3590ETD Touchscreen Weight Indicator for Digital Weighbridges
In stock
SKU
3590ETD
Weight indicator which is suitable to manage digital load cells for weighbridges. It allows the visualization of all the data related to the weighing and the personalization of the screens, greatly simplifying the operations of the user.
Summary Feature
- High-performance digital weight indicator (IP65)
- ABS Housing
- Ethernet Port, 3 serial ports with Transmission protocolsC
- ompletely configurable printouts
- 5.7" Touch Screen Display
- Weighbridge Software for Digital Load Cells
- The wide range of connectable accessories
Downloads
Downloads
Downloads
Downloads
Downloads
Downloads
Downloads
Downloads
Main Features
- Power supply unit specifically for digital load cells.
- Protection board for power supply circuit and communication between digital load cells and self-resetting Surge Arresters..
- Backlit graphic display with touch screen technology, lxh= 120x90mm size. Screens completely customizables.
- Multilanguage software.
- QWERTY, AZERTY o QWERTZ keyboard, selectable.
- ABS waterproof enclosure, with new IP65 protection system (IP40 on version with thermal printer).
- Dimensions: 278x125x186 mm.
- Suitable for use on the table, column, or wall.
- Real time clock and permanent data storage.
- Fitted alibi memory, integrated on the motherboard.
- Slot for built-in micro SD for recording logos (upon request).
- Functions available with DINITOOLS utility
- Configuration, data entry and print formatting.
- Recording and filing of all the information on PC.
- Complete retrieval of the configuration.
- Instrument calibration with numeric values.
- Customization of the screens. - 24-bit A/D converter, 4 channels, up to 3200 conv./sec. and up to 8 signal linearisation points.
- 4 independent analogue channels (up to 2 in the E-AF03 version) for reading of the weight.
- Connection with up to 16 analogue load cells of 350 Ohm (45 load cells of 1000 Ohm) and with the main digital load cells available on the market (mod. E-AF03).
- Management of the most common digital load cells for weighbridges, also CE-M approved applications.
- Up to 10.000e OIML or 3 x 3000e @ 0,3 µV/e CE-M legal for trade.
- Up to 1.000.000 displayable divisions for internal factory use, with internal resolution up to 3.000.000 points.
- Connectable to printers and labellers with free programmation of the printout formats.
- 110-240 Vac power supply.
Communication Interfaces
| Code | Description |
| RSCBUSBPG | (S1) USB PC/RS232 converter cable, l=1,5m, with PG9. USB/RJ11 connector. For the connection to weight indicators with IP65, IP68 and IP69K protection system. |
| RSCBUSB485 | USB cable converter PC/RS485, l=1,5m. With metallic PG9 cable gland. To be combined with an indicator fitted with optional or standard RS485 output. |
| OBRF2G4 | (S1) External 2.4 GHz radio module, cable l=3m. ABS IP65 protecting box, 3 m cable, power supply from weight indicator. Max. distance, in appropriate environmental and installation conditions: 45 m indoors, 140m outdoors. 39 configurable channels. |
| OBRF2G4-USB | External 2.4 GHz radio frequency module, USB cable l=1m. Power supply directly from the USB port. Max. functioning distance, in appropriate environmental and installation conditions: 45 m indoors, 140 outdoors. 39 configurable channels. |
| RF2G4 | (S1) Built-in 2.4 GHz radiofrequency module. Max. functioning distance in appropriate environmental and installation conditions: 45m indoors, 140m outdoors. Up to 39 configurable channels. (RF2G4 must be combined with another radio module). |
| WIFITD-3 | (S1) Built-in WI-FI interface. For wireless connection (through access point) to the company computer system. |
| ETHD | (S1) Built-in Ethernet interface. Speed from 10 to 100 Mbps, TCP, UDP, IP, ARP, ICMP, Ethernet Mac protocols. |
| SETHNET | (S1) External RS232/Ethernet interface. Suitable for multi-location weighbridge systems networking. Compatible only with the AF03 software. |
| PROFI232-1 | External RS232/RS485/PROFIBUS interface for DIN bar. Connectable to the indicators with Profibus protocol with PCB, terminal blocks, plastic box and UL-marked labels (if applicable). |
| BLTH-4 | (S1) Built-in bluetooth interface. For wireless connection of the scale to tablets, smartphones, laptops or barcode scanners. Attention: this interface is not suitable for Master-Slave systems. |
| FB1SCB2M | CPU Connecting Cable for Fieldbus Series 1S. Length: 2m |
