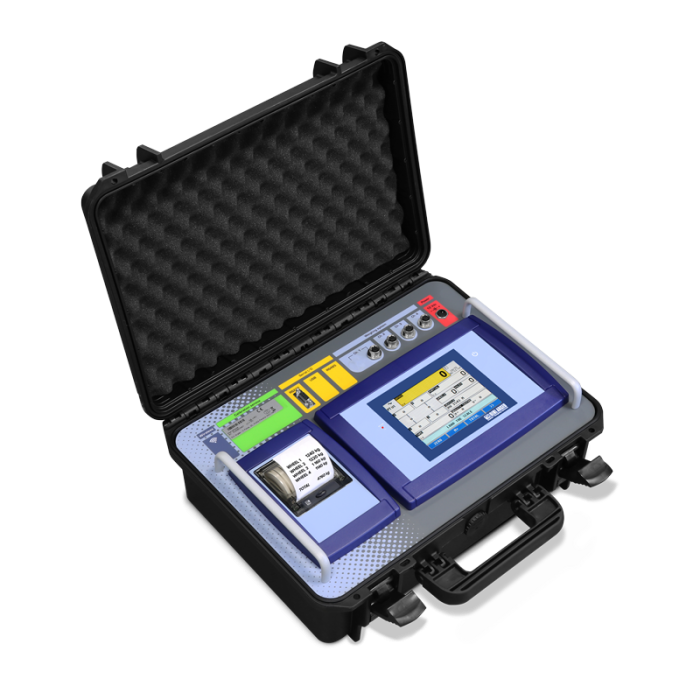

3590ETKR Touchscreen Weight Indicator with Transport Case
In stock
SKU
3590ETKR
Multifunction high performance digital weight indicator in Rack version, complete with 4 connectors for linking the platforms, built-in rechargeable battery with charger, and case. Particularly suitable for mobile weighing applications.
Summary Feature
- High-performance digital weight indicator (IP65)
- ABS Transport Case
- Designed for Wheel and Axle Weighing
- Customized 8" Touch Screen Display
- Integrated Printer
- 4 Physical Load Cell Inputs
- Optional RF 2.6G Connection up to 16 FR Wheel Pads"
Downloads
Downloads
Downloads
Downloads
Downloads
Downloads
Main Features
- ABS transport case, with housing for the indicator and space for extra accessories.
- 3590ET series indicator fit in a metallic rack type involucre with dimensions of 270x440mm, complete of housing for printer, connectors for platforms, and serial output on 9-pole connector.
- Backlit graphic display with touch screen technology, lxh= 120x90mm size. Screens completely customizables.
- Multilanguage software.
- QWERTY, AZERTY or QWERTZ keyboard integrated in the touch screen, selectable.
- Dimensions: 325x460x170 mm. Weight: about 5kg.
- Fitted with attached thermal printer.
- Real time clock and permanent data storage.
- Fitted alibi memory, integrated on the motherboard.
- Slot for built-in micro SD for recording the configuration, logos, and customized screens (upon request).
- Functions available with DINITOOLS utility
- Configuration, data entry and print formatting.
- Recording and filing of all the information on PC.
- Complete retrieval of the configuration.
- Instrument calibration with numeric values.
- Customization of the screens. - 24-bit A/D converter, 4 channels, up to 3200 conv./sec. and up to 8 signal linearisation points.
- 4 independent analogue channels (up to 2 in the E-AF03 version) for reading of the weight.
- Connection with up to 16 analogue load cells of 350 Ohm (45 load cells of 1000 Ohm).
- Up to 10.000e OIML or 3 x 3000e @ 0,3 µV/e CE-M legal for trade.
- Up to 1.000.000 displayable divisions for internal factory use, with internal resolution up to 3.000.000 points.
- Connectable to printers and labellers with free programmation of the printout formats.
- Power supply through built-in rechargeable battery, the operating time is of about 10 hours.
Communication Interfaces
| Code | Description |
| WIFITD-3 | (S1) Built-in WI-FI interface. For wireless connection (through access point) to the company computer system. |
| BLTH-4 | (S1) Built-in bluetooth interface. For wireless connection of the scale to tablets, smartphones, laptops or barcode scanners. Attention: this interface is not suitable for Master-Slave systems. |
| ETHKR-1 | (S2) Internal Ethernet interface with RJ45 panel-mounted connector. Speed 10-100 Mbps, protocols TCP, UDP, IP, ARP, ICMP, Ethernet Mac. |
