Shackle Style / Load Pin

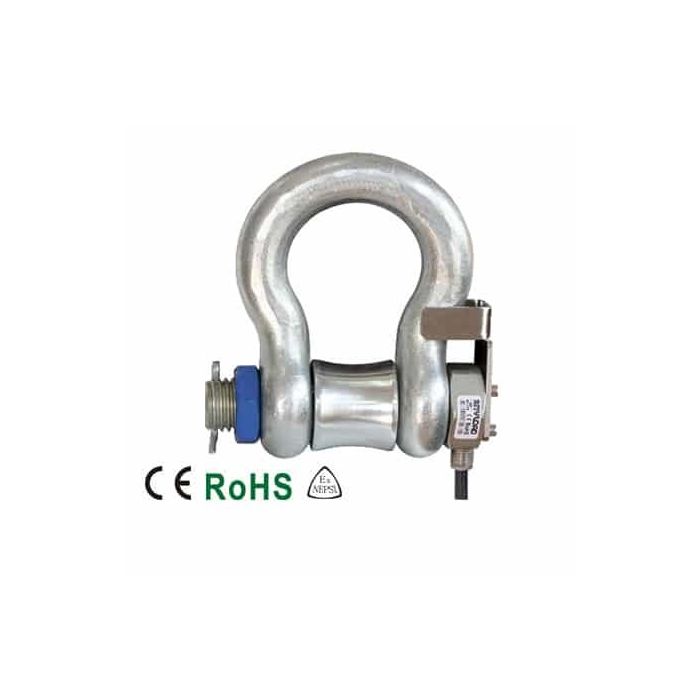

535AHM2 Shackle Load Cell
In stock
SKU
535AHM2
The ANYLOAD 535AHM2 Shackle Load Cell integrates load pin and shackle for simplified installation. Bobbin design increases measurement accuracy. Available in capacities ranging from 5t to 100t
Summary Feature
- Material: Alloy steel
- Capacities: 5t, 10t, 15t, 20t, 30t, 50t, 100t
- High tensile shackle meets ISO2415-2004 requirements
- Full Scale Output: 2.5mV/V ± 5%
- IP Rating: IP67
- CE , RoHS and Ex certified load cells
Specification
| Rated Capacity | 5t, 10t, 15t, 20t, 30t, 50t, 100t |
| Full Scale Output | 2.5mV/V ± 5% |
| Non-linearity | < 1% of full scale |
| Repeatability | < 0.5% |
| Hysteresis Error | < 1% of full scale |
| Bridge Impedance | 350Ω |
| Test load | 200% of the rated capacity |
| Total Error | 1% of full scale |
| IP Rating | IP67 |
