Shackle Style / Load Pin

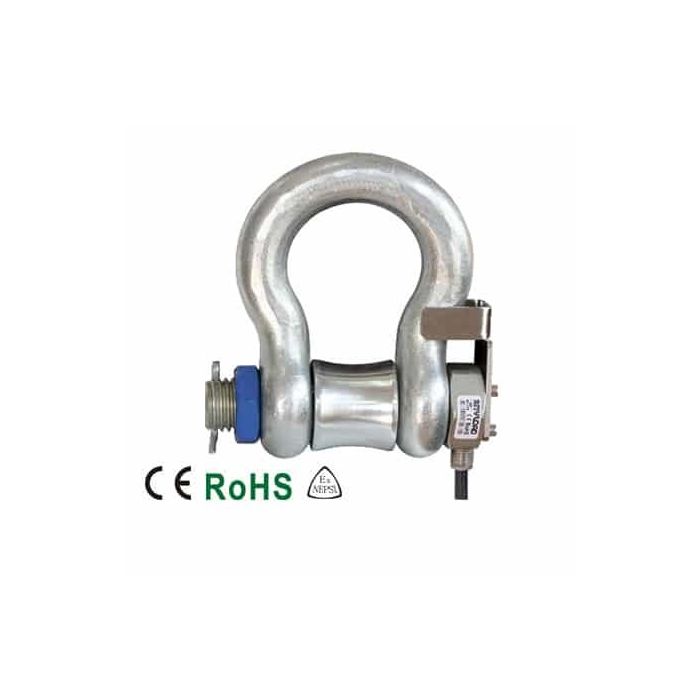

535ASM2 Shackle Load Cell
In stock
SKU
535ASM2
Committed to load cell innovation, Anyload’s shackle load cells can be integrated directly and easily into existing workflows with little disruption, providing a time-saving and simple weighing solution. The stainless steel IP67 waterproof construction provides heavy-duty reliability for rugged and harsh environments.
Summary Feature
- Load cell material: Stainless steel ( 2Cr13 or 17-4PH stainless steel ); Shackle: Alloy steel.
- Capacities: 5t, 10t, 15t, 20t, 30t, 50t, 100t
- CE, RoHS, and Ex certified load cells
- Full Scale Output: 2.5mV/V ± 0.25%
- Seal Type/IP Rating: Environmentally Sealed/IP67
Specification
| Rated Capacity | 5t, 10t, 15t, 20t, 30t, 50t, 100t |
| Full Scale Output | 2.5mV/V ± 0.25% |
| Non-linearity | < 1% of full scale |
| Repeatability | < 0.5% |
| Hysteresis Error | < 1% of full scale |
| Bridge Impedance | 350Ω |
| Test load | 200% of the rated capacity |
| Total Error | 1% of full scale |
| Seal Type/IP Rating | Environmentally Sealed/IP67 |
