535TS Load Pin
In stock
SKU
535TS

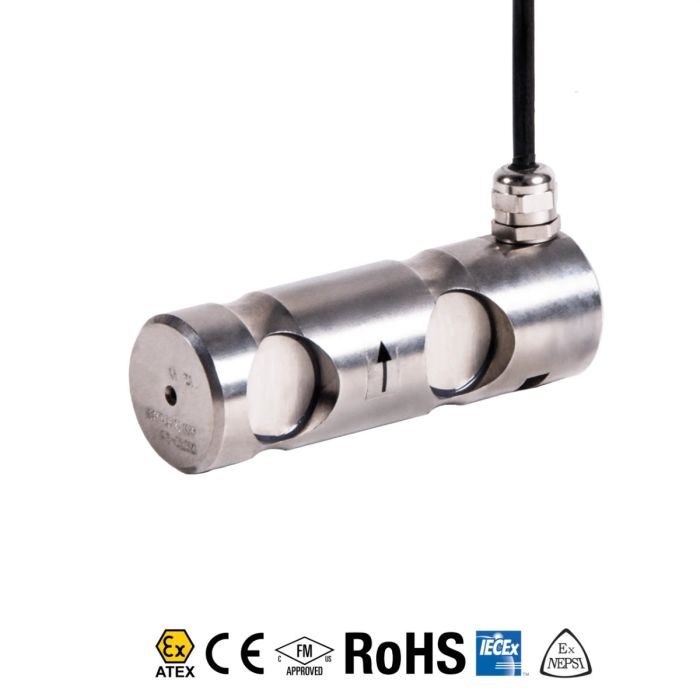

The ANYLOAD 535TS load pin measures both compression and tension loads on a load-bearing pin structural element. It is constructed with 2Cr13 stainless steel and comes in 2t, 5t, 10t, 20t, 40t, 70t, and 100t capacities.
Summary Feature
- Material: Stainless steel
- Rated Capacities: 2t, 5t, 10t, 20t, 40t, 70t, 100t
- Full Scale Output: 1mV/V ± 10%
- Safe Overload: 150% of full scale
- Breaking Overload: 400% of full scale
- IP Rating: IP67
- CE, RoHS and Ex certified
Specification
| Rated Capacity | 2t, 5t, 10t, 20t, 40t, 70t, 100t |
| Full Scale Output | 1mV/V ± 10% |
| Zero Balance | ± 0.02mV/V |
| Non-linearity | < ± 0.50% |
| Repeatability | < ± 0.30% |
| Hysteresis Error | < ± 0.50% |
| Creep in 30 minutes | < ± 0.20% |
| Input Resistance | 400Ω ± 20Ω |
| Output Resistance | 350Ω ± 3Ω |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2GΩ (50V DC) |
| Temperature Effect on Sensitivity | < ±0.020% of Cn/k |
| Temperature Effect on Zero Balance | < ± 0.020% of Cn/k |
| Compensated Temperature Range | –10°C to 50°C/14°F to 122°F |
| Service Temperature Range | -30°C to 70°C/-20°F to 160°F |
| Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 400% of full scale |
| Seal Type | Environmentally sealed |
| IP Rating | IP67 |
