Weighpads

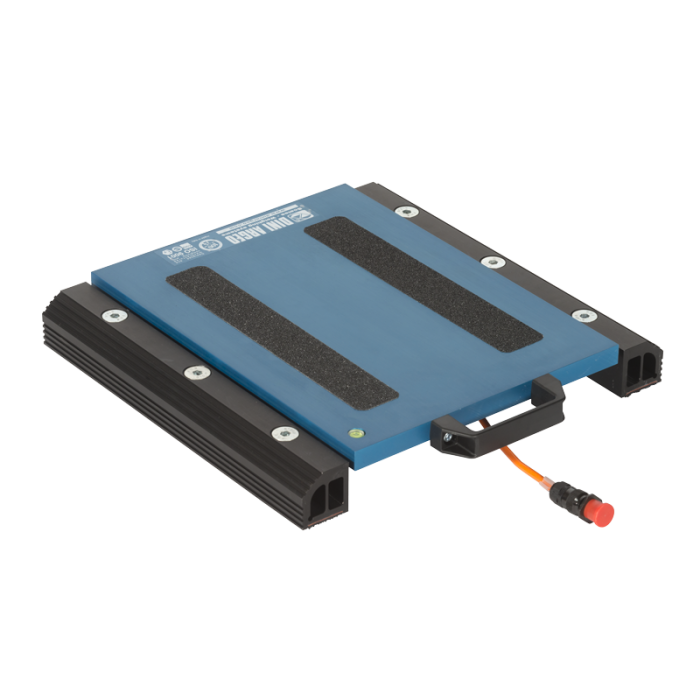

WWSB 400 x 300mm Wheel Weighing Pads
In stock
SKU
WWSB
Pads designed to create weighing stations for small sized vehicles particularly accurate and sturdy, with attention to details.
Summary Feature
- Stainless steel load cells, with IP68 protection.
- Hermetic junction box with IP68 protection rate.
- Special vulcanised nonslip rubber applied under the pad, for good grip on all types of surfaces.
- Extremely simple and reliable connection of the scale to the weight indicator.
Main Features
- Pad dimensions: 400x300mm.
- Weighing area: 300x215mm.
- Overall dimensions: see technical drawing
- Weight: approximately 14,5kg.
- Handle for easy handling.
- Sturdy structure, made with special aluminium, which guarantees lightness and makes these suitable also for harsh working conditions.
- 10 m PUR cable, with IP68 connector on platform side and new M12 connector on weight indicator side.
- Stainless steel load cells, with IP68 protection.
- Hermetic junction box with IP68 protection rate.
- Special vulcanised nonslip rubber applied under the pad, for good grip on all types of surfaces.
- Extremely simple and reliable connection of the scale to the weight indicator.
- Available in legal for trade approved version.
- Available in high resolution version.
- Available upon price estimate in Atex version for 1&21 and 2&22 zones.
