Weighpads

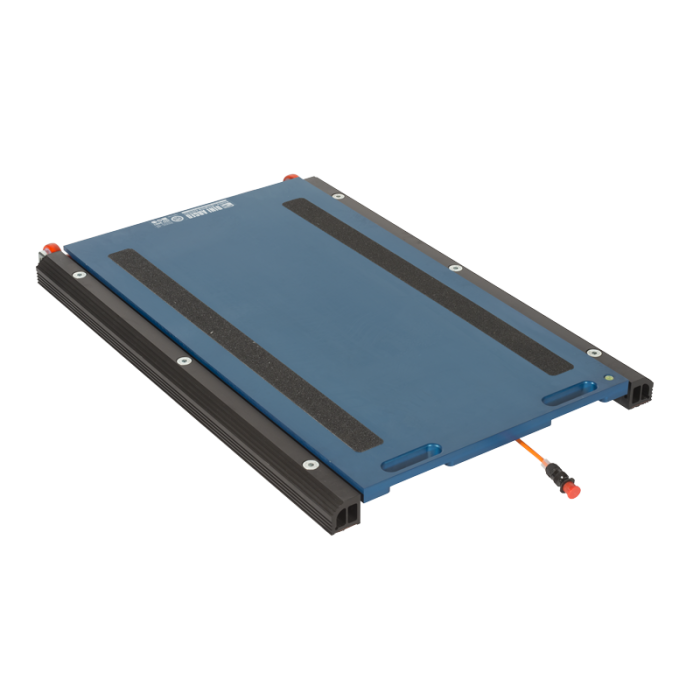

WWSD 900 x 500mm Wheel Weighing Pads
In stock
SKU
WWSD
Pads designed to create weighing stations for large sized vehicles fitted with twinned wheels or large sized tyres fitted with integrated wheels for easy transport and positioning. Particularly suitable for dynamic weighing.
Summary Feature
- Dual handle for easy handling.
- Fitted with wheels for pad transport.
- IP68 stainless steel load cells.
- Hermetic junction box with IP68 protection rate.
Main Features
- Pan dimensions: 900x500mm
- Weighing area: 750x415mm
- Overall dimensions: see technical drawing
- Weight: approximately 41,5kg.
- Dual handle for easy handling.
- Fitted with wheels for pad transport.
- Sturdy structure, made in special aluminium, which guarantees lightness and makes these suitable also for harsh working conditions.
- 10 m PUR cable, with IP68 connector on platform side and new M12 connector on weight indicator side.
- IP68 stainless steel load cells.
- Hermetic junction box with IP68 protection rate.
- Special vulcanised nonslip rubber applied under the pad for good grip on all surfaces.
- Extremely simple and reliable connection of the scale to the weight indicator.
- Available in legal for trade approved version.
- Available in high resolution version.
- Available upon price estimate in Atex version for 1&21 e 2&22 zones.
