Weighpads

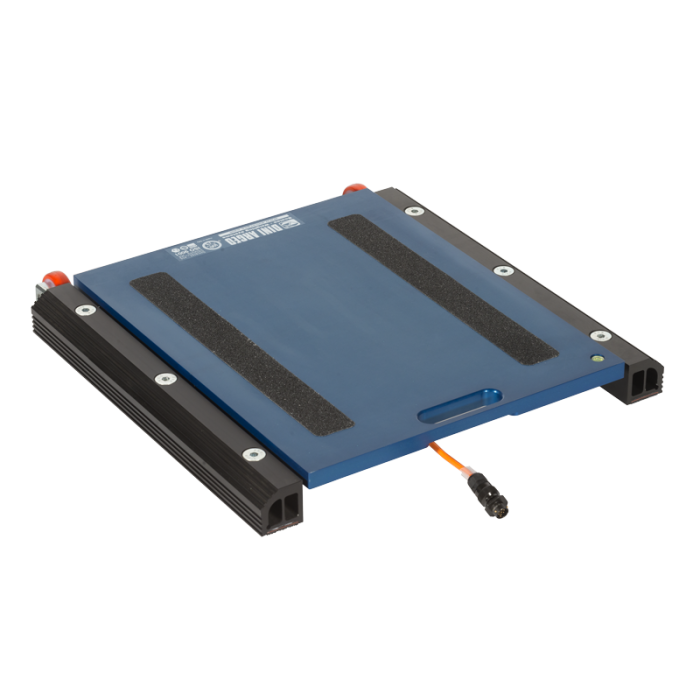

WWSC 500 x 400mm Wheel Weighing Pads
In stock
SKU
WWSC
Pads designed to create weighing stations for large vehicles particularly accurate and sturdy, with attention to details.
Summary Feature
- IP68 stainless steel load cells.
- IP68 hermetic junction box.
- Special vulcanised nonslip rubber applied under the pad, for good grip on all types of surfaces.
- Extremely simple and reliable connection of the scale to the weight indicator.
Main Features
- Pan dimensions: 500x400mm
- Weighing area: 400x315mm
- Overall dimensions: see technical drawing
- Weight: approximately 18kg.
- Handle for easy handling.
- Equipped with wheels for pad transport.
- Sturdy structure, made in special alluminum, which guarantees lightness and makes these suitable also for harsh working conditions.
- 10 m PUR cable, with IP68 connector on platform side and new M12 connector on weight indicator side.
- IP68 stainless steel load cells.
- IP68 hermetic junction box.
- Special vulcanised nonslip rubber applied under the pad, for good grip on all types of surfaces.
- Extremely simple and reliable connection of the scale to the weight indicator.
- Available in legal for trade approved version.
- Available in high resolution version.
- Available upon price estimate in Atex version for 1&21 e 2&22 zones.
