S-Beam Load Cell

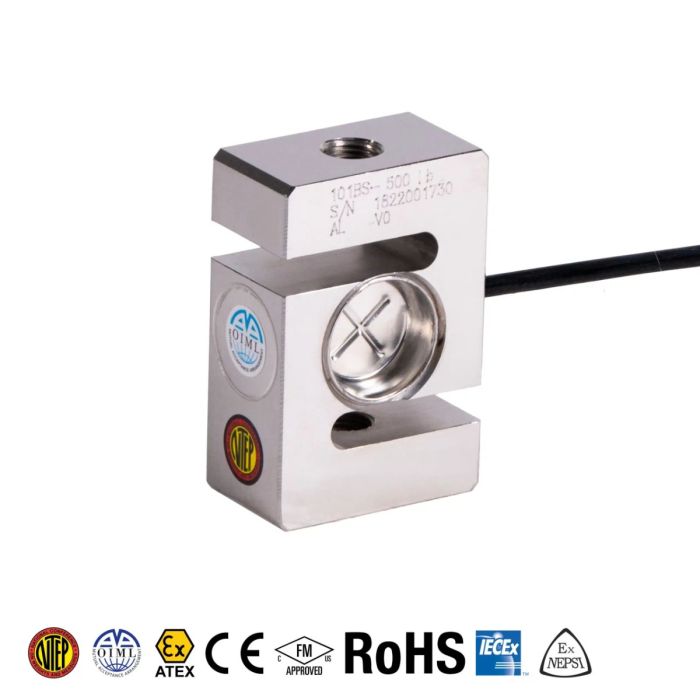

101BS S-Beam Load Cell
In stock
SKU
101BS
The 101BS is a tough S-beam with OIML C3/C4.5 and NTEP approvals. The heavy-duty stainless steel IP68 corrosion and water-resistant construction make this S-beam ideal for washdown applications with hostile environments such as in the chemical, food processing, and pharmaceutical industries.
Summary Feature
- Material: Stainless steel
- Rated Capacities: 500lb, 1Klb, 1.5Klb, 2Klb, 2.5Klb, 3Klb, 5Klb, 10Klb, 15Klb, 20Klb, 300kg, 500kg, 1t, 2t, 3t, 5t, 10t
- Full Scale Output: 2mV/V ± 1%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP68
- CE, RoHS and Ex(NEPSI) certified
Specification
| Rated Capacities | 500lb, 1Klb, 1.5Klb, 2Klb, 2.5Klb, 3Klb, 5Klb, 10Klb, 15Klb, 20Klb, 300kg, 500kg, 1t, 2t, 3t, 5t, 10t |
| Full Scale Output | 2mV/V ± 1% |
| Zero Balance | ± 0.02mV/V |
| Non-linearity | < ± 0.023% |
| Repeatability | < ± 0.030% |
| Hysteresis Error | < ± 0.030% |
| Creep in 30 minutes | < ± 0.030% |
| Input Resistance | 400Ω ± 20Ω |
| Output Resistance | 350Ω ± 3Ω |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2GΩ (50V DC) |
| Temperature Effect on Sensitivity | < ±0.0012% of Cn/k |
| Temperature Effect on Zero Balance | < ± 0.0040% of Cn/k |
| Compensated Temperature Range | –10°C to 50°C/14°F to 122°F |
| Service Temperature Range | -30°C to 70°C/-20°F to 160°F |
| Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Welded seal |
| IP Rating | IP68 |
Interchangeable
| Manufacturer | Model |
| Coti Global | CGSB-SSW |
| Flintec | ULB |
| HBM | RSC* |
| Rice Lake | RL20001HE |
| Vishay Celtron | STC HSS |
| Vishay Sensortronics | 60063 |
| Vishay Tedea-Huntleigh | 616** |
| Vishay Tedea-Huntleigh | 620 |
