S-Beam Load Cell
101NH S-Beam Load Cell
In stock
SKU
101NH

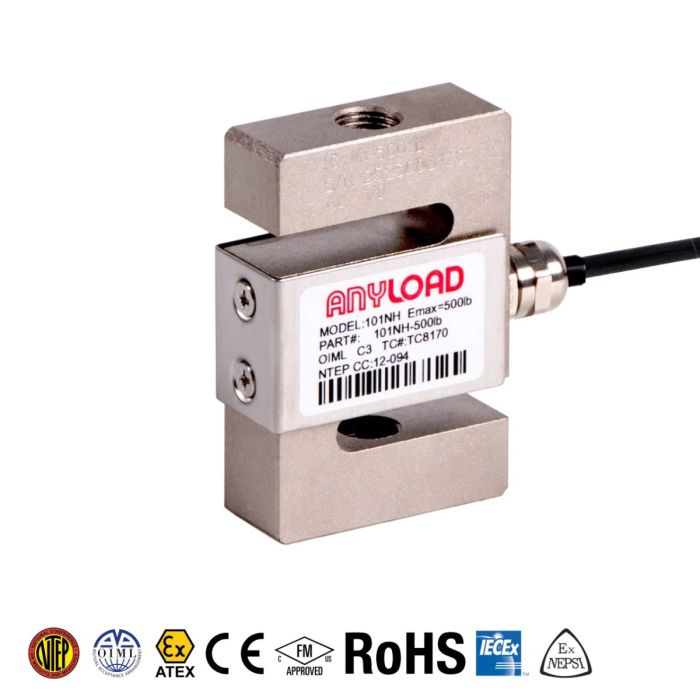

The 101NH S-beam is an OIML C3/C4.5 and NTEP-approved S-beam suited to a wide variety of applications due to its simplicity, ease of installation, and overall reliability. This is a IP67 water-resistant S-beam.
Summary Feature
- Material: Alloy steel
- Rated Capacities: 50lb, 100lb, 200lb, 250lb, 300lb, 500lb, 750lb, 1Klb, 1.5Klb, 2Klb, 2.5Klb, 3Klb, 5Klb, 10Klb, 15Klb, 20Klb
- Full Scale Output: 3mV/V ± 1%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP67
- CE, RoHS and Ex certified
Specification
| Rated Capacities | 50lb, 100lb, 200lb, 250lb, 300lb, 500lb, 750lb, 1Klb, 1.5Klb, 2Klb, 2.5Klb, 3Klb, 5Klb, 10Klb, 15Klb, 20Klb |
| Full Scale Output | 3.0mV/V ± 1% |
| Zero Balance | ± 0.02mV/V |
| Non-linearity | < ± 0.017% |
| Repeatability | < ± 0.017% |
| Hysteresis Error | < ± 0.017% |
| Creep in 30 minutes | < ± 0.023% |
| Input Resistance | 350Ω ± 7Ω |
| Output Resistance | 350Ω ± 3Ω |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2GΩ (50V DC) |
| Temperature Effect on Sensitivity | < ±0.0012% of Cn/k |
| Temperature Effect on Zero Balance | < ± 0.0040% of Cn/k |
| Compensated Temperature Range | –10°C to 50°C/14°F to 122°F |
| Service Temperature Range | -30°C to 70°C/-20°F to 160°F |
| Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Environmentally sealed |
| IP Rating | IP67 |
Interchangeable
| Manufacturer | Model |
| Coti Global | CGSB / CSGB-1 |
| Rice Lake | RL20000 |
| Rice Lake | RL20001 |
| Vishay Celtron | STC |
| Vishay Revere Transducers | 363 |
| Vishay Sensortronics | 60001 |
