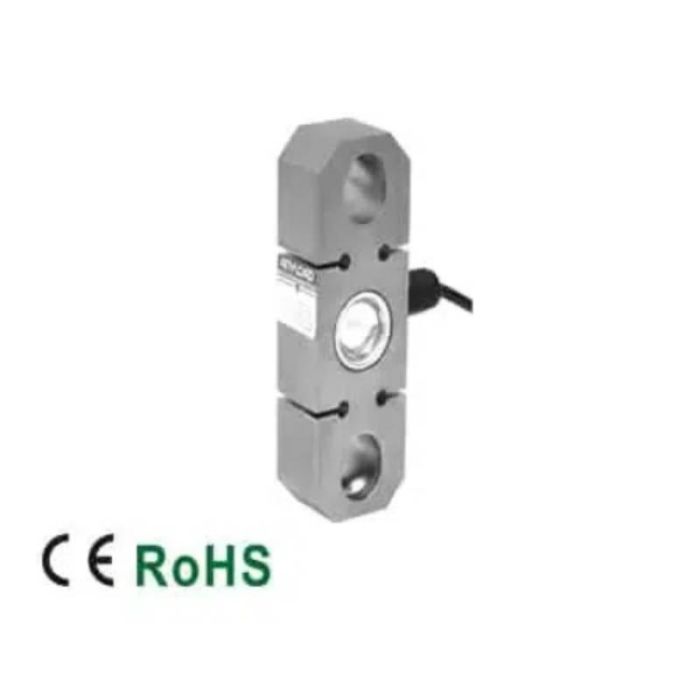

110AH Tension Link Load Cell
In stock
SKU
110AH
Leading the industry in tension link innovation, the 110AH offers superior accuracy and heavy-duty reliability. The IP67 alloy steel construction with a breaking overload of 400% provides an excellent safety factor and years of problem-free service.
Summary Feature
- Material: Alloy steel
- Rated Capacities: 5t, 20t, 50t
- Full Scale Output: 2mV/V ± 10%
- Safe Overload: 200%
- Breaking Overload: 400%
- IP Rating: IP67
- CE and RoHS certified
Specification
| Rated Capacity | 5t, 20t, 50t |
| Full Scale Output | 2mV/V ± 10% |
| Zero Balance | ± 0.05mV/V |
| Non-linearity | < ± 0.017% |
| Repeatability | < ± 0.017% |
| Hysteresis Error | < ± 0.017% |
| Creep in 30 minutes | < ± 0.023% |
| Input Resistance | 400Ω ±20Ω |
| Output Resistance | 350Ω ± 3Ω |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2GΩ (50V DC) |
| Compensated Temperature Range | –10°C to 50°C/14°F to 122°F |
| Safe Overload | 200% of full scale |
| Breaking Overload | 400% of full scale |
| Seal Type | Environmentally sealed |
| IP Rating | IP67 |
