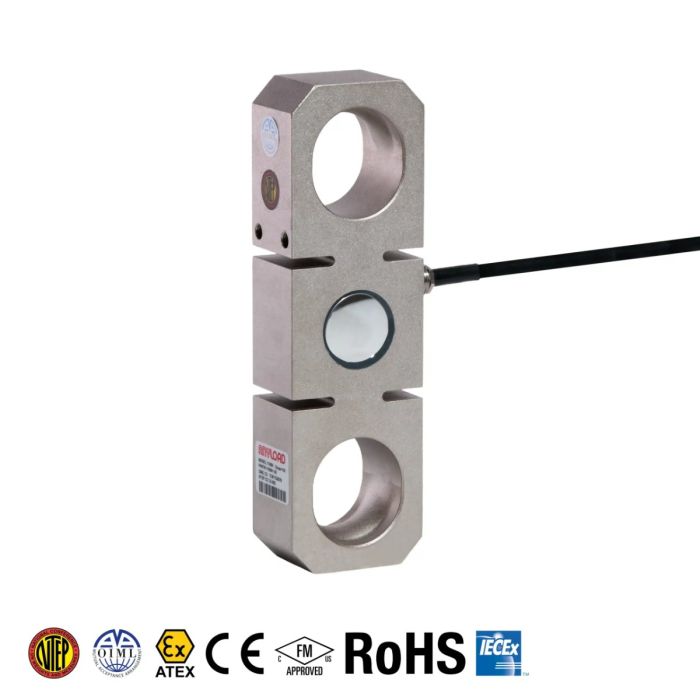

110BH Tension Link Load Cell
In stock
SKU
110BH
Anyload’s 110BH offers unparalleled accuracy and toughness all in a highly compact construction. The NTEP and OIML-certified design with a patented internal structure that achieves natural linearity with superior temperature compensation and resistance to vibration. The IP67 alloy steel construction with a breaking overload of 400% provides an excellent safety factor and years of problem-free service.
Summary Feature
- Material: Alloy steel
- Rated Capacities: 1t, 2t, 5t, 10t, 20t, 30t, 50t, 75t, 100t, 120t
- Full Scale Output: 3mV/V ± 10%
- Safe Overload: 150% of full scale
- Breaking Overload: 400% of full scale
- IP Rating: IP67
- CE and RoHS certified
Specification
| Rated Capacity | 1t, 2t, 5t, 10t, 20t, 30t, 50t, 75t, 100t, 120t |
| Full Scale Output | 3mV/V ± 10% |
| Zero Balance | ± 0.02mV/V |
| Non-linearity | < ± 0.017% FS |
| Repeatability | < ± 0.017% FS |
| Hysteresis Error | < ± 0.017% FS |
| Creep in 30 minutes | < ± 0.023% FS |
| Input Resistance | 400Ω ±20Ω |
| Output Resistance | 350Ω ± 3Ω |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2GΩ (50V DC) |
| Temperature Effect on Sensitivity | < ±0.0012% of Cn/k |
| Temperature Effect on Zero Balance | < ± 0.0040% of Cn/k |
| Compensated Temperature Range | –10°C to 50°C/14°F to 122°F |
| Service Temperature Range | -30°C to 70°C/-20°F to 160°F |
| Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
| Nominal Temperature Range (°C) | –10°C to 40°C |
| Nominal Temperature Range (°F) | 14°F to 104°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 400% of full scale |
| Seal Type | Environmentally sealed |
| IP Rating | IP67 |
