3590EGT-IECEX3GD Touch screen Indicator for Ex 2 and 22 Zones
In stock
SKU
3590EGT-IECEX3GD

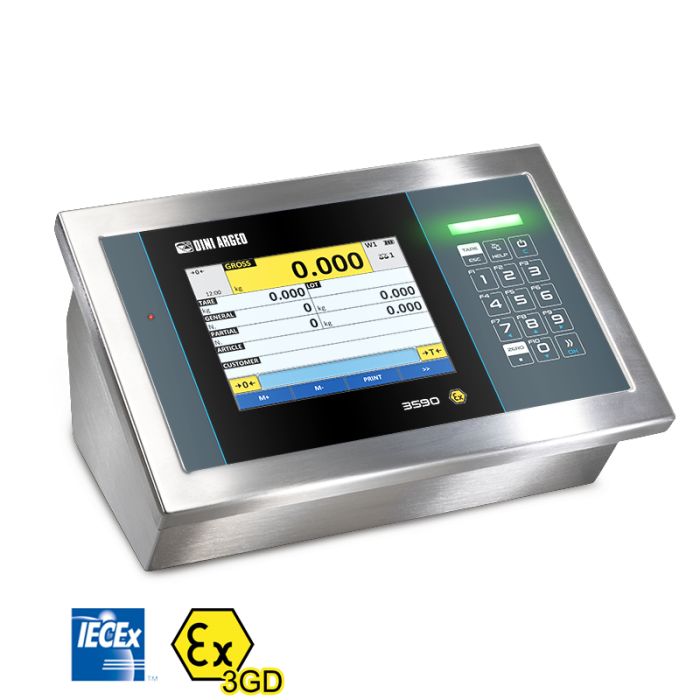

The 3590EGT-IECEX3GD weight indicator has a big touch screen display, for ATEX 2 & 22 hazardous zones. Suitable for advanced industrial applications, it is fitted with 3 serial ports, configurable printouts and integrated alibi memory.
Summary Feature
- 5.7' colour touch screen display
- AISI 304 stainless steel casing, with IP65 certified protection and IP68 performance
- Real time clock and permanent data storage.
Downloads
Downloads
Downloads
Technical Features
- 5,7' colour touch screen display.
- Multilanguage software.
- 15-key alphanumerical waterproof keyboard.
- 3-way control light.
- Selectable QWERTY, AZERTY or QWERTZ keyboard integrated in the touch screen.
- AISI 304 stainless steel casing, with IP65 certified protection and IP68 performance.
- Dimensions: 280x143x185mm.
- Suitable for use on the table. Real time clock and permanent data storage.
- Alibi memory as standard, integrated on the motherboard.
- Slot for built-in micro SD to record the configuration, logos, and customized screens (upon request).
- Functions available with DINITOOLS utility
- Configuration, data entry and print formatting.
- Recording and filing of all the information on PC.
- Complete retrieval of the configuration.
- Instrument calibration with numeric values.
- Customization of the screens.
- 24-bit A/D converter, 4 channels, up to 3200 conv./sec. with automatic frequency selection and up to 8 signal linearisation points.
- 4 independent analogue channels for weight reading (up to 2 in E-AF03 version).
- Connection with up to 16 analogue load cells of 350 Ohm (45 load cells of 1000 Ohm).
- Up to 10.000e OIML or multi-range 3 x 3000e @ 0,3 µV/d CE-M legal for trade.
- Up to 1.000.000 displayable divisions for internal factory use, with internal resolution up to 3.000.000 points.
- Connectable to printers and labellers with free programming of the printout formats.
- Power supply from 110-240Vac line or 12-24 Vdc Max. 25.2W
