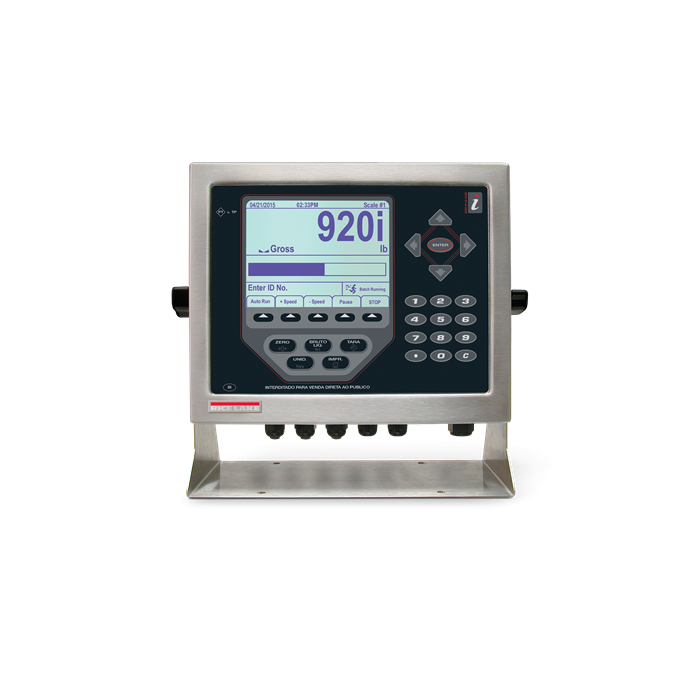

920i® Series Programmable Weight Indicator and Controller
In stock
SKU
920i-Series
The 920i® weight indicator and process controller blends revolutionary user interfaces, total flexibility and processing performance with the simplicity of a basic weight indicator. A crisp, highly customizable LCD graphical display, programmable softkeys and industry recognized electronics are surrounded by a virtually indestructible enclosure to create one of the industry’s most trusted weight indicators and process controllers.
Summary Feature
- Customizable backlit LCD graphical user interface
- 22 softkeys with 10 user-defined keys
- Tactile keypad for scale operations, numeric entry and navigation
- On-screen keyboard available during entry mode (or external keyboard)
Downloads
Main Features
- Customizable backlit LCD graphical user interface
- 22 softkeys with 10 user-defined keys
- Tactile keypad for scale operations, numeric entry and navigation
- On-screen keyboard available during entry mode (or external keyboard)
- Supports 28 scales within 5 different scale types:
- Analog load cell, multi-range/interval weighing
- Total scale summing
- Serial input scales
- iQUBE² scales
- Program scales
- 2 to 14 option slots for additional scale channels, serial ports, digital inputs and outputs, analog outputs and protocol interfaces
- iRite™ Programming Software
- Customizable user applications with event-based functions
- 150 built-in functions for application processes and data tables
- Four serial ports supporting RS-232, RS-485, 20mA
- USB Type A and B replaces Serial on Port 2 (USB model)
- Alibi memory captures serial port transmissions
- Configurable data stream format
- 100 setpoints, 27 configurable setpoint types
- Six digital I/O for control
- Four different enclosure types: universal, deep universal, wall mount, panel mount
Customised Application
| Part # | Description |
|---|---|
| 68532 | Ind Option, A/D Single Channel 920i, Kit. |
| 68533 | Ind Opt,A/D Dual Channel 920i |
| 67600 | Ind OPT,Memory Module 1 Meg 920i |
| 67601 | Ind OPT,I/O 24 Channel 720i, 820i, 920i |
| 67602 | Ind OPT,Analog Output 0-10V, 0-20mA, 4-20mA for 720i, 820i, 920i |
| 103138 | Ind Opt,Analog Output Dual Channel, 0-10V, 0-20mA, and 4-20mA for 720i, 820i, 920i. |
| 67604 | Ind OPT,Serial Port Dual Channel Full Duplex RS232 and 4 Wire RS485 720i, 820i, 920i |
| 87697 | Ind OPT,Dual Analog input 0-10V 0-20mA With Dual Thermocouple Inputs 920i Requires 2.05 Software or Higher |
Digital Input Output
| Part # | Description |
|---|---|
| 68532 | Ind Option, A/D Single Channel 920i, Kit. |
| 68533 | Ind Opt,A/D Dual Channel 920i |
| 67600 | Ind OPT,Memory Module 1 Meg 920i |
| 67601 | Ind OPT,I/O 24 Channel 720i, 820i, 920i |
| 67602 | Ind OPT,Analog Output 0-10V, 0-20mA, 4-20mA for 720i, 820i, 920i |
| 103138 | Ind Opt,Analog Output Dual Channel, 0-10V, 0-20mA, and 4-20mA for 720i, 820i, 920i. |
| 67604 | Ind OPT,Serial Port Dual Channel Full Duplex RS232 and 4 Wire RS485 720i, 820i, 920i |
| 87697 | Ind OPT,Dual Analog input 0-10V 0-20mA With Dual Thermocouple Inputs 920i Requires 2.05 Software or Higher |
| Part # | Description |
|---|---|
| 65383 | Ind Opt,Ethernet Thin Server UDS-1100, 10/100 RJ45 232 Serial to Ethernet. |
| 206271 | Ind Opt,Wireless LAN Card RS232/WiFi Interface 802.11 A/B, 10/100 Base-T, XPico for 920i |
| 87803 | Ind Opt,EtherNet/IP for 920i, 820i and 720i. Protocol for Allen-Bradley PLC. |
| 68540 | Ind Opt,PROFIBUS DP Interface Kit (Internal), 720i, 820i and 920i. |
| 187816 | Ind Opt,Profinet 920i |
| 68541 | Ind Opt,DeviceNet Interface 720i, 820i and 920i. |
| 103136 | IND OPT,ControlNet Right Angle BNC Connector |
| 71986 | Ind Opt,Ethernet TCP/IP Interface Card, Embedded Device Server 10/100baseT 920i, 820i & 720. |
| Part # | Description |
|---|---|
| 69782 | Ind Opt,Expansion Board With 2 Option Slots 920i Wall Mount |
| 71743 | Ind OPT,Expansion Board w/2 Option Slots 920i Panel Mount |
| 180047 | Ind OPT,Expansion Board w/2 Option Slots 920i for DC Powered Panel Mount and Deep Univ. |
| 179488 | Ind Opt,Expansion Board With 2 Option Slots 920i Wall Mount for DC Power Supply |
| 69783 | Ind Opt,Expansion Board With 6 Option Slots 920i Wall Mount |
