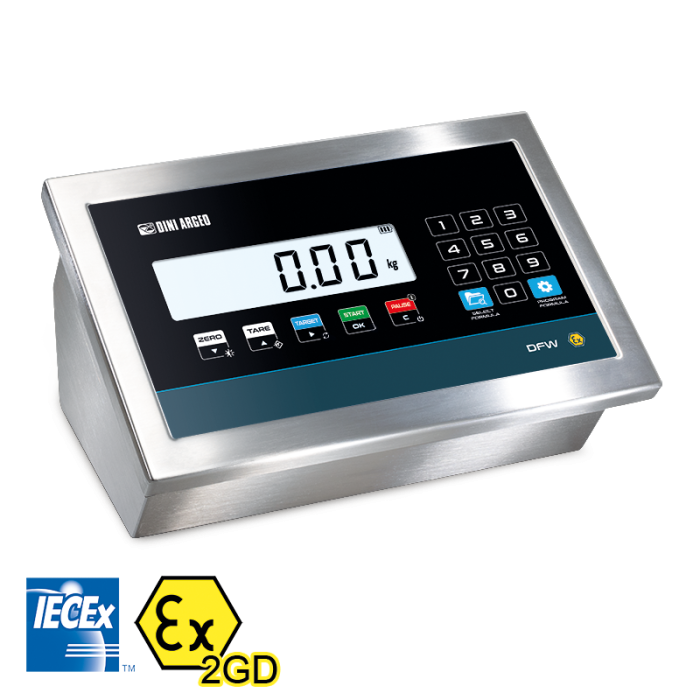

DFWIECEX-BATCH1 Weight Indicator, IECEx and ATEX Certified, for Zones 1 and 21, 2 and 22, for Dosages in Hazardous Areas
In stock
SKU
DFWIECEX-BATCH1
DFWIECEX-BATCH1 weight indicator is the ultimate solution for single product dosages in hazardous areas. Equipped with RGB backlit display to drive the operator during dosage process and new 3 speed management to make a fast, medium and slow speed filling, with fully programmable thresholds.
Summary Feature
- LCD display with RGB backlight
- State-of-the-art, high-speed X-Core CPU ideal for handling fast and accurate weighing, filling or dosing processes
- ASCII/RTU Modbus
Downloads
Main Features
- In load dosage function and automatic unload phase
- RGB LCD backlit display, easy to read in any light condition
- 4 digital inputs to remotize START, STOP and PAUSE
- 12 digital outputs, for Fast, Medium and Slow speed dosage, lance control, errors
- State-of-the-art, high-speed X-Core CPU, ideal for handling fast and accurate weighing, filling or dosing processes
- 50 formula database
- Fly weight management
- Tolerance check
- Safety Tare Control at dosage start
- Programmable lance control
- Optional analog output proportional to dosed weight or dosage speed
- Wireless Personal Area Network (WPAN)
Technical Features
- Protection:
- for Gas: Ex ib [ib Gb] [ia Ga] IIC T4 Gb
- for dust: Ex tb [ib Db] [ia Da] IIIC T135°C Db
- ATEX: II2(2)G(1)G
- ATEX: II2(2)D(1)D
- Ta 0°C / +50°C - High contrast RGB backlit display, with 6 digits of 25 mm.
- 17-key waterproof keyboard
- AISI 304 stainless steel casing, with IP65 certified protection and IP68 performance.
- Minimum measurement range (internal use): 0.01 µV/d
- 4 load cell inputs, with selectable operating mode:
- Single scale (use of only one input) - Metrological approval: 10,000e or multi range 3x3000e @ 0.3µV/e.
- Connection up to 8 load cells of 350 Ohm.
- Possibility of direct connection to load receptor installed in Zone 0 and 20.
- 1 Intrinsically safe RS485 serial port as standard, for two-way communication with PLCs, PCs or devices in explosive zones. (2 optional RS485 serial port can be added as option)
- Power supply of your choice (see options table):
- Through Dini Argeo power supply, 110-230 Vac or 24 Vac - 24 Vdc (battery powered unit available upon request) - Dimensions: 280x143x185 mm.
- Available cable glands: 2 x PG9 as standard, 1 PG supplied (not mounted) and setup for a further 2 optional PG9s.
- Low Energy Wireless Personal Area Network (WPAN) 5.0 with maximum communication distance: 10m
