Indicators / Controllers

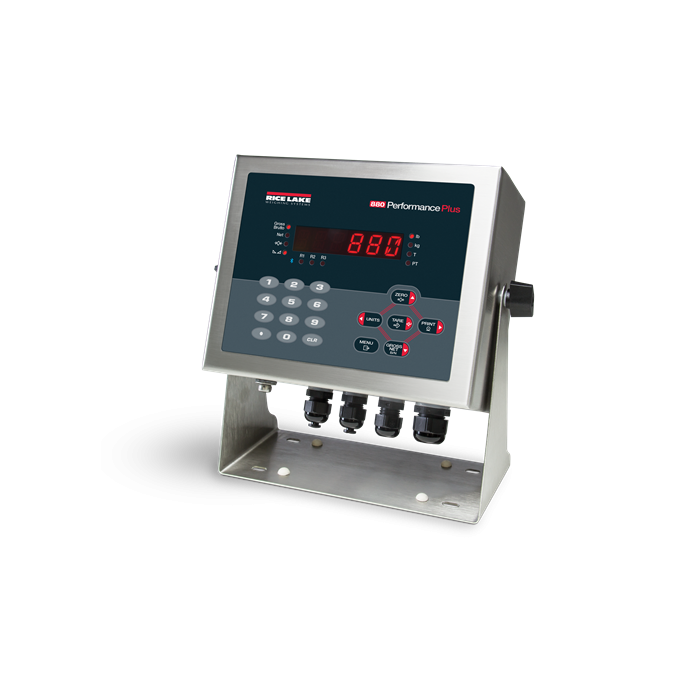

880/880 Plus Performance™ Series Programmable Weight Indicator/Controller
In stock
SKU
880-880-Plus
Designed with the user process in mind and built for communication, Rice Lake’s Performance™ Series weight indicators/controllers are packed with power, yet simple in design. Intuitive multifunction menu keys allow navigation in any application and the NEMA Type 4X/IP69K-rated gasket effectively keeps internal components out of harm’s way. The innovative 880 and 880 Plus also accommodate a wide range of connectivity—from USB and RS-232/ RS-485 to Ethernet TCP/IP.
Equipped with a universal mount, the 880 Plus delivers all of the powerful features of the 880 when a panel mount isn’t necessary. The numeric keypad simplifies the user experience, making operations more convenient and flexible.
Summary Feature
- LED display
- USB device port connects directly to a PC
- Ethernet TCP/IP polled or continuous polled or continuous, server/client
- Built-in DIN-rail clips on controller box (panel mount)
- Display and controller can be separated up to 250 ft (panel mount)
Main Features
- LED display
- USB device port connects directly to a PC
- Ethernet TCP/IP polled or continuous polled or continuous, server/client
- Built-in DIN-rail clips on controller box (panel mount)
- Display and controller can be separated up to 250 ft (panel mount)
- Hardware slot for one option card
- Operator functions through menu key for audit trail, preset tare, accumulator, time and date and setpoints
- Audit trail tracking for configuration and calibration changes. Password protection for user and configuration changes.
- 20 setpoints with latched batch engine or unlatched outputs
- Four onboard digital I/O channels
- Programmable ticket formats up to 1,000 characters for header text, gross, net, accumulator and setpoints
- Five-point linearization calibration
- Local/remote operation
- Multi-range or multi-interval weighing
- Filter settings for light, medium and heavy noise
Communication Interfaces
| Part # | Description |
|---|---|
| 179156 | Ind Opt,Analog Output 0-10VDC, 0-20mA, 4-20mA used in 880 Indicator |
| 179157 | Ind Opt,880 Relay Card Four Channel, Dry Contact, 3A @ 115VAC, 5A @ 30VDC. |
| 197343 | 880 Opt,Digital I/O Option Card |
| 197347 | 880 Opt,Serial Interface Option Card |
