Canister Load Cell

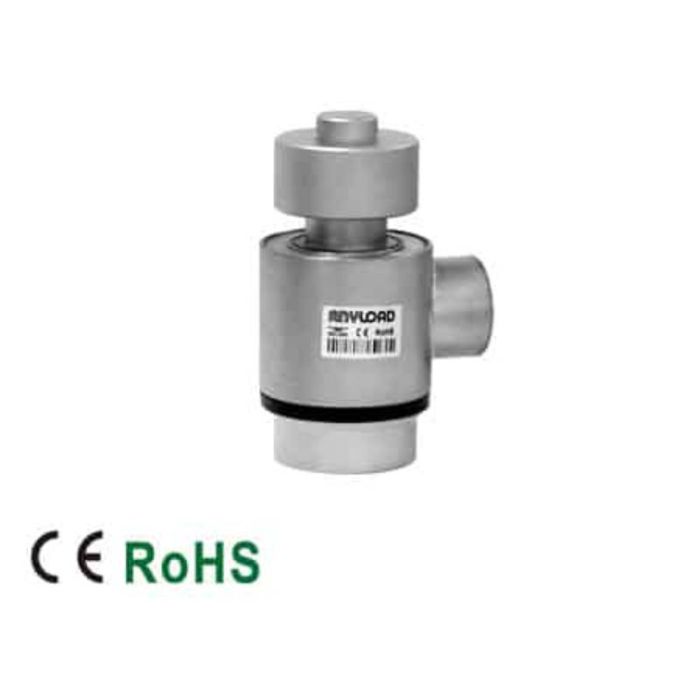

106AH Canister Load Cell
In stock
SKU
106AH
Suitable for high-capacity applications, the heavy-duty IP67-class water-resistant canister load cell provides a high accuracy compression weighing solution that performs under challenging conditions. The load cell is fully compensated from –10°C to 50°C/14°F to 122°F.
Summary Feature
- Material: Alloy steel
- Rated Capacities: 5t, 10t, 20t, 30t, 50t
- Full Scale Output: 1.5mV/V ± 0.25%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP67
- CE and RoHS certified
Specification
| Rated Capacity | 5t, 10t, 20t, 30t, 50t |
| Full Scale Output | 1.5mV/V ± 0.25% |
| Zero Balance | ± 0.02mV/V |
| Non-linearity | < ± 0.023% |
| Repeatability | < ± 0.017% |
| Hysteresis Error | < ± 0.017% |
| Creep in 30 minutes | < ± 0.023% |
| Input Resistance | 770Ω ±30Ω |
| Output Resistance | 700Ω ± 5Ω |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2GΩ (50V DC) |
| Temperature Effect on Sensitivity | < ±0.0017% of Cn/k |
| Temperature Effect on Zero Balance | < ± 0.0040% of Cn/k |
| Compensated Temperature Range | –10°C to 50°C/14°F to 122°F |
| Service Temperature Range | –30°C to 70°C/-20°F to 160°F |
| Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Welded seal |
| IP Rating | IP67 |
Interchangeable
| Manufacturer | Model |
| Sartorius | PR6221* |
| Vishay Tedea Huntleigh | 120** |
