Canister Load Cell

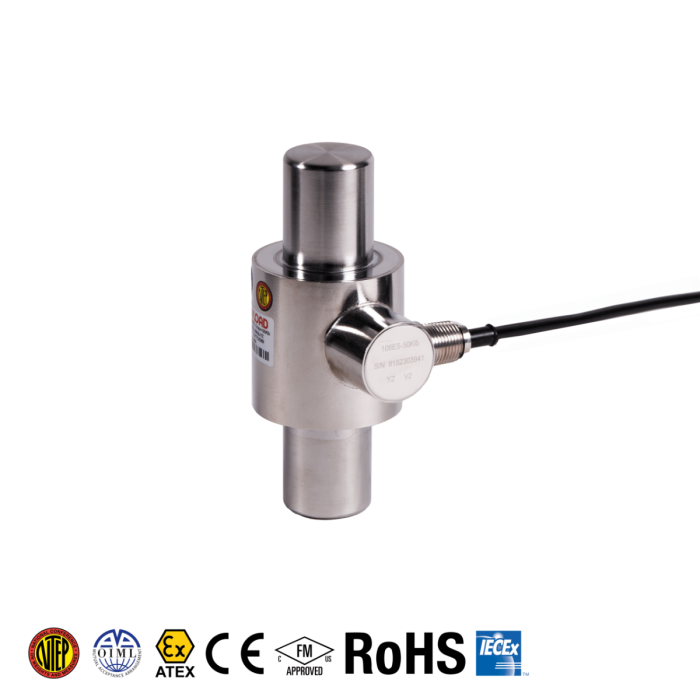

106ES Canister Load Cell
In stock
SKU
106ES
The 106ES is an NTEP and OIML-approved canister load cell. The IP68 weld sealed stainless steel water and corrosion-resistant construction is built for the toughest high-capacity weighing needs.
Summary Feature
- Material: Stainless steel
- Rated Capacities: 50Klb, 100Klb
- Full Scale Output: 2mV/V ± 1%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP68
- OIML MAA C3, Y=16 000 certified from 10t-50t
- CE and RoHS certified
Specification
| Rated Capacity | 50Klb, 100Klb |
| Full Scale Output | 2mV/V ± 1% |
| Zero Balance | ± 0.02mV/V |
| Non-linearity | < ± 0.030% |
| Repeatability | < ± 0.023% |
| Hysteresis Error | < ± 0.023% |
| Creep in 30 minutes | < ± 0.030% |
| Input Resistance | 1100Ω ± 50Ω |
| Output Resistance | 1000Ω ± 10Ω |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2GΩ (50V DC) |
| Temperature Effect on Sensitivity | < ±0.0012% of Cn/k |
| Temperature Effect on Zero Balance | < ± 0.0040% of Cn/k |
| Compensated Temperature Range | –10°C to 50°C/14°F to 122°F |
| Service Temperature Range | -30°C to 70°C/-20°F to 160°F |
| Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Welded seal |
| IP Rating | IP68 |
Interchangeable
| Manufacturer | Model |
| Artech | SS90710 |
| Cardinal | SCA |
| Coti Global | CG-26S |
