Canister Load Cell

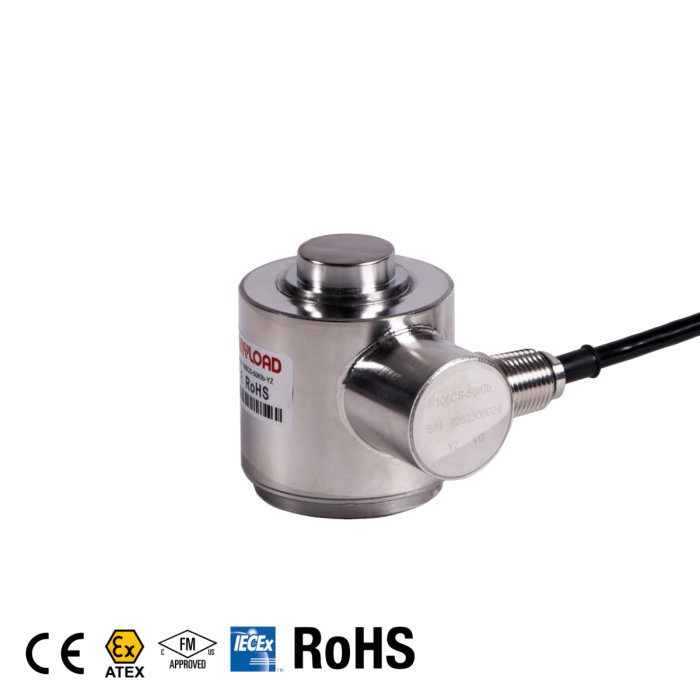

106CS Canister Load Cell
In stock
SKU
106CS
Heavy-duty compression canister load cell with stainless steel IP68 water and corrosion-resistant construction capable of performing even under extreme conditions.
Summary Feature
- Material: Stainless steel
- Rated Capacities: 25Klb, 50Klb, 100Klb, 200Klb, 10t, 15t, 25t, 40t, 50t, 100t
- Full Scale Output: 1.75mV/V ± 0.25%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP68
- CE and RoHS certified
Specification
| Rated Capacity | 25Klb, 50Klb, 100Klb, 200Klb, 10t, 15t, 25t, 40t, 50t, 100t |
| Full Scale Output | 1.75mV/V ± 0.25% |
| Zero Balance | ± 0.02mV/V |
| Non-linearity | < ± 0.023% |
| Repeatability | < ± 0.030% |
| Hysteresis Error | < ± 0.030% |
| Creep in 30 minutes | < ± 0.030% |
| Input Resistance | 450Ω ± 4.5Ω |
| Output Resistance | 480Ω ± 4.5Ω |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2GΩ (50V DC) |
| Temperature Effect on Sensitivity | < ±0.0012% of Cn/k |
| Temperature Effect on Zero Balance | < ± 0.0040% of Cn/k |
| Compensated Temperature Range | –10°C to 50°C/14°F to 122°F |
| Service Temperature Range | –30°C to 70°C/-20°F to 160°F |
| Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Welded seal |
| IP Rating | IP68 |
Interchangeable
| Manufacturer | Model |
| Artech | 90210 |
| Coti Global | CG-175 |
| Cardinal | CP1 |
| Vishay Revere Transducers | CP |
| Vishay Revere Transducers | 392B |
