Canister Load Cell

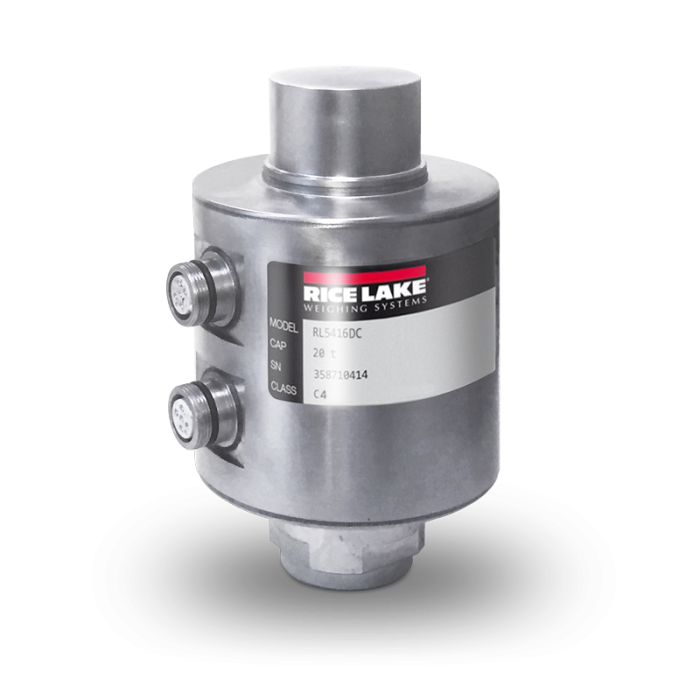

RL5416DC Series, Rice Lake Digital Canister Load Cells, in Stainless Steel with Connectors
In stock
SKU
RL5416DC
Digital canister load cells for CE-M approved weighbridges, tanks, silos, etc. Manufactured in STAINLESS STEEL, IP68 protection degree, 4000 divisions.
Summary Feature
- IP68 protection degree
- Stainless steel body
- 4-core RS485 cable as optional with stainless steel shield, diameter 7mm
- Self-centring spherical bases
- Equipped with anti-rotation system, to be combined with 173793 cups for proper operation
Downloads
Downloads
Downloads
Main Features
- Specifically developed for working without junction box
- CAPACITIES: 30 t, 40 t
- OIML R60. C4 precision class
- Stainless steel body. IP68 Protection Degree.
- h= 150 mm
Specification
| Rated capacity (FS) | 30 t, 40 t |
| Combined Error | 0,022 %F.S |
| Creep error after 30 minutes | 0,14 %FS |
| Temperature effect on zero | 0,02 %F.S./10°C |
| Temperature effect on sensitivity | 0,01 %F.S./10°C |
| Non-linearity error | 0,015%F.S. |
| Non-repeatability error | 0,006%F.S. |
| OIML R60 | Vmin= Emax/18000 Accuracy class: C4 Max. number of intervals: 4000e (EC Test Certificate, according to OIML R60 (2000)) |
| Gas dischargers to protect against atmospheric discharges | Double connector for load cells interconnection and weight indicator connection, without junction box. Halfduplex RS485 communication technology Rice Lake communication protocol |
| Power Supply | 8...15 V (AC or DC) |
| Rated digital output | 40000 d |
| Current consumption | 35 mA |
| Internal resolution | 24 bit |
| Converter rate | max. 40 conv./sec. |
| RS485 communication speed | Max 100kHz. |
| Operating temperature | -35 ~ +70 °C |
| Compensated temperature | -10 ~ +40 ° |
| Storage temperature limits | -40 ~ 80 °C |
| Safe load limit | 150% F.S. |
| Ultimate overload | 300% F.S. |
