Canister Load Cell

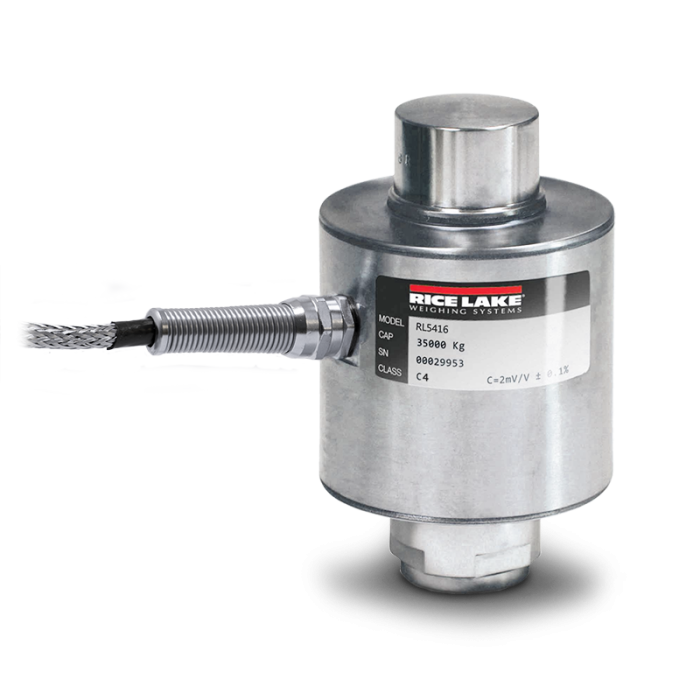

RL5416 Series, Rice Lake Canister Load Cell, Stainless Steel
In stock
SKU
RL5416
Canister load cells for CE-M approved weighbridges, tanks, silos, etc. Manufactured in STAINLESS STEEL, IP69K protection degree, 4000 divisions.
Summary Feature
- IP69K protection degree
- Stainless steel body
- 6-core cable with stainless steel shield, length 20 m, diameter 6mm
- Nickel plated steel cable gland with protective spring
- Self-centering spherical bases
- Equipped with anti-rotation system, to be combined with 173793 cups for proper operation
Downloads
Downloads
Downloads
Main Features
- CAPACITIES: 20t, 30t, 40t, 50t.
- OIML R60. C4 precision class.
- Stainless steel body. IP69K Protection Degree.
- 20 m armoured rat-proof cable with stainless steel armouring as standard
- h= 150mm.
Specification
| Rated capacity (FS) | 20 t, 30 t, 50 t |
| Combined Error | 0,022 %F.S |
| Creep error after 30 minutes | 0,014 %F.S. |
| Temperature effect on zero | 0,01 %F.S./5°C |
| Temperature effect on sensitivity | 0,01 %F.S./10°C |
| Non-linearity error | 0,015%F.S. |
| Non-repeatability error | 0,006%F.S. |
| OIML R60 | Vmin= Emax/14000 Accuracy class: C4 Max. number of intervals: 4000e OIML |
| Power Supply | 5÷15 Vdc |
| Rated output at F.S. | 2 ± 0.1% mV/V |
| Input resistance | 800 ± 3Ω |
| Output resistance | 700 ± 3Ω |
| Insulation resistance | 5000MΩ |
| Operating temperature | -35 ~ +70 °C |
| Compensated temperature for homologation | -10 ~ +40 ° |
| Storage temperature limits | -40 ~ 80 °C |
| Normal service | 120% F.S. |
| Maximum load / Safe load | 150% F.S. |
| Ultimate overload | 300% F.S. |
