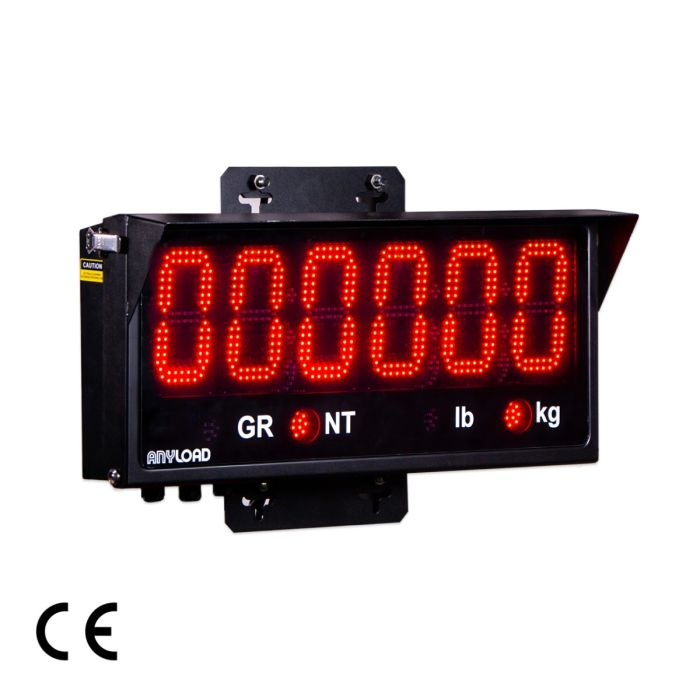

808AH Remote Display 5” Standard Model
In stock
SKU
808AH
The ANYLOAD 808AH are newest generation industrial remote displays designed to be versatile, rugged, durable, and easy to install. They are incorporated with Auto-Learn communication and protocol feature for compatibility with wide range of indicators and weighing instruments.
Summary Feature
- Six 5” (125mm) tall digits LED industrial remote display
- High intensity, wide viewing angle discrete LEDs
- Standard seven segments
Downloads
Specification
| Display Digits | 5” (125mm) height, 6 digits, 7 segments |
| Digit Segments | 1500mcd high intensity brightness, 120° viewing angle, discrete red CREE® LED |
| Micro Controller | 50MHZ ARM Cortex M® processor |
| Status Indication | 4 annunciators for GR, NT, lb and kg (some versions in kg and t) |
| Decimal Point | 2 decimal point places with choice of dot or coma |
| Membrane Keypad | 4 keys dome membrane keypad |
| Brightness Control | 550nm ambient light sensor to adjust brightness in day and night |
| Communication Ports | 3 independent serial ports for RS232, RS422/RS485, and 20mA current loop |
| Communication Baud | Auto learn 300,600,1200,2400,4800,9600,19200,38400,57600 baud rate |
| String Protocol | Auto learn to detect string protocol and parse incoming string |
| Echo Port | 2 independent serial ports for RS232 and RS422/RS485 |
| Printer Port | 1 independent transmit port for none legal for trade printing applications |
| Digital Output | 1 form C relay output rated at 2A / 60VDC |
| Digital inputs | 2 independent dry contact switch inputs |
| Main Enclosure | Mild steel powder coated NEMA 4 / IP65 weather proof suitable for outdoor applications |
| Power Supply | Input: 100-240VAC, 1.2A, 50/60Hz / output: 12VDC, 5.0A, 60W encapsulated |
| Power Consumption | 120VAC @ 0.5A / 12VDC @ 2.5A ( 60W AC / 30W DC ) typical |
| Operating Temperature | -40°F to 120°F (-40°C to 50°C) |
| Operating Humidity | 20%RH to 90%RH |
| Enclosure Ventilation | GORE ® breather vent to avoid condensation |
| Physical Dimensions | 22.2” W X 9.8” H X 3.5” D (565mm X 250mm X 89mm) or 25.9” W X 13.7” H X 5.9” D (658mm X 348mm X 149mm) – mounting brackets & canopy included |
| Total Weight | 7.5 kg (17 lb) main unit and 1.5 kg (3 lb) mounting kits, approximately |
| Industry Approvals | UL/CSA approved class II power supply |
| Certification of Conformity | CE Marking, EMC and LVD Directives |
