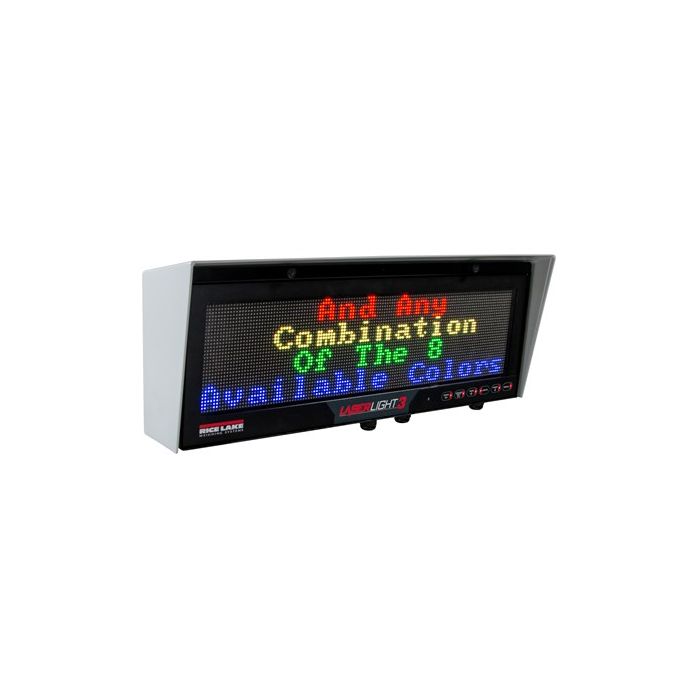

LaserLight3™ Color Remote Display with Messaging
In stock
SKU
LaserLight3
The LaserLight3 color remote display is a versatile solution for facilities needing clear visuals, from floor to truck scales. Multiple layout choices include mirror mode, 1-line, 2-line and quadrant formats to adjust the layout to facility needs.
Summary Feature
- Vibrant 128- by 32-pixel LED color display with non-glare lens; high-intensity digits up to 5 inches tall
- Color commands change background and foreground text
- Auto Learn identifies and interprets the source weight data string for maximum compatibility with a wide range of indicators
Main Features
- Vibrant 128- by 32-pixel LED color display with non-glare lens; high-intensity digits up to 5 inches tall
- Color commands change background and foreground text
- Auto Learn identifies and interprets the source weight data string for maximum compatibility with a wide range of indicators
- Versatile layout choices include mirror mode, 1-line, 2-line and quadrant format
- Dynamic messaging views can scroll, slide or flash
- Display stop/go light symbols/arrows with digits up to 4 inches tall
- Selectable time/date when weight is at zero
- Integrated weathertight keypad for sending configurable scale commands to the indicator
- Durable IP66 enclosure with Gore-Tex® breather vent to inhibit internal moisture
- RS-232, RS-422, 20 mA and Ethernet TCP/IP
- Mounting options include VESA, flange and pole configurations
Technical Features
Power Consumption:
AC voltages: 100 to 240 VAC; 50/60 Hz
120 watt (120 VAC)
95 watt (12 VDC)
Output Interface:
Ethernet TCP/IP, independently configurable echo port
Input Data Format:
Baud Rate: 1200, 2400, 4800, 9600, 19200, 38400, 57600 and 115200 self-learning or configurable
Update:
Continuous or out-of-motion modes
Message interrupt mode
Digital I/O:
Four I/O read or set
5 V logic
Communication Ports:
Ethernet TCP/IP, RS-232, RS-485, 20 mA current loop
Character Format:
7 or 8 data bits; even, odd, or no parity; 1 or 2 stop bits
Maximum Viewing Distance:
4-inch character: 100 ft (30 m)
5-inch character: 150 ft (46 m)
Viewing Angle:
160°
Display:
Bright, outdoor color LED lamps
128 × 32-pixel, 4 mm pitch
Decimal or comma indication
Weight display with units and mode
Message display 1, 2 or 4 lines
Stop/go and directional arrow
Keys/Buttons:
Integrated keypad
Time:
Software enable, 12- or 24-hour format
Date:
Software enable, US or ISO format
Temperature:
Operating: -40 °F to 120 °F (-40 °C to 49 °C)
Rating/Material:
IP66 weathertight
Mild steel, powder-coated
Weight:
Without wall mount: 14.19 lb (7.81 kg)
With wall mount: 20.48 lb (10.66 kg)
With sunshade and wall mount: 29.79 lb (14.88 kg)
Warranty:
Two-year limited
