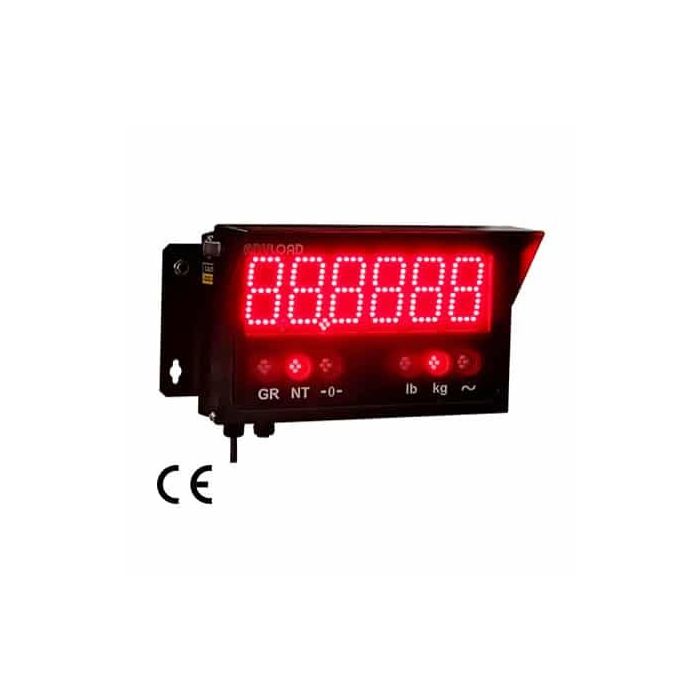

808CH Remote Display 2.5” Compact Model
In stock
SKU
808CH
The ANYLOAD 808CH are newest generation industrial remote displays designed to be versatile, rugged, durable, and easy to install.
Summary Feature
- Single-row discrete LED
- 6 digits, 2.5” height, 7 segment
- Wide viewing 120° angle
- Two levels brightness adjustment
- Mirror display
- Grey front safety glass
Downloads
Specification
| Display Digits | 2.5” (65mm) height, 6 digits, 7 segments |
| Display Visibility | Max 25m(100ft) @1500mcd, 120 angle |
| Micro Controller | 50MHZ ARM Cortex M® processor |
| Status Indication | 4 annunciators for GR, NT, lb and kg (some versions in kg and t), and 2 annunciators for motion and zero |
| Decimal Point | 2 decimal point places with choice of dot or coma |
| Membrane Keypad | 4 keys dome membrane keypad |
| Brightness Control | Ambient light sensor to adjust brightness in day and night |
| Communication Ports | 3 independent serial ports for RS232, RS422/RS485, and 20mA current loop |
| Communication Baud | Auto learn 300,600,1200,2400,4800,9600,19200,38400,57600 baud rate |
| String Protocol | Auto learn to detect string protocol and parse incoming string |
| Echo Port | 2 independent serial ports for RS232 and RS422/RS485 |
| Printer Port | 1 independent transmit port for none legal for trade printing applications |
| Input and Output | 2 dry contact switches and 1 form C relay |
| Main Enclosure | Powder coated mild steel(IP65) |
| Power Supply | 100-240VAC, 1.1A, 50/ 60Hz, UL approved |
| Operating Temperature | -40°F to 120°F (-40°C to 50°C) |
| Operating Humidity | 20%RH to 90%RH |
| Enclosure Ventilation | GORE ® breather vent to avoid condensation |
| Physical Dimensions | 296mm X 191mm X 67mm (11.65” X 7.52” X 2.64”) or 353mm X 191mm X 116.8mm (13.90” X 7.52” X 4.60”) – mounting brackets & canopy included |
| Total Weight | 6.4 kg (14 lb), approximately |
| Industry Approvals | UL/CSA approved class II power supply |
| Certification of Conformity | CE Marking, EMC and LVD Directives |
