Remote Displays

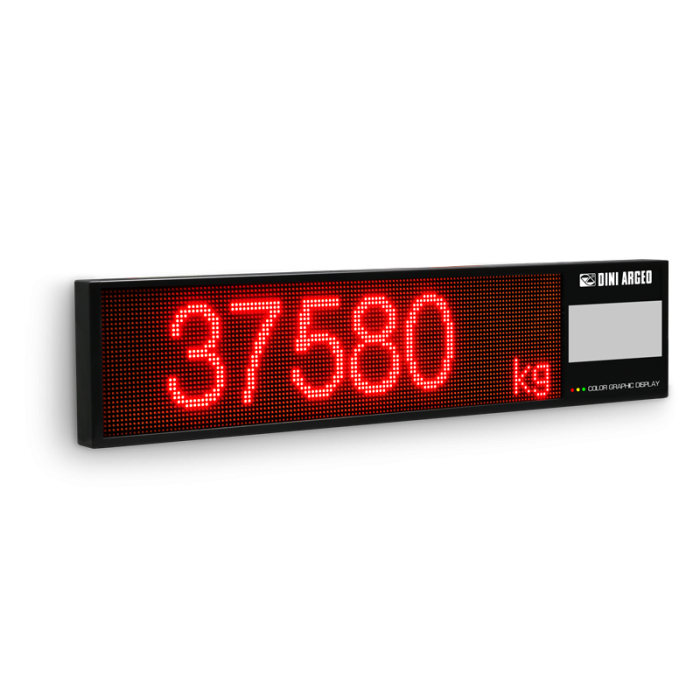

Alphanumeric Repeater GLR100
In stock
SKU
GLR100
Alphanumeric graphic repeater with RGB HIGH LUMINOSITY LED matrix, ideal for displaying weight and operational messages. Depending on the connected indicator, it is possible to display weight with large digits or customisable operational messages. RGB technology allows you to change the colour displayed, with a traffic light function (red, yellow, green). CE-M approved (OIML R-76 / EN 45501).
Summary Feature
- Painted steel container, with protection rating IP54.
- Suitable for indoor or outdoor use (suitably protected from rain).
- Alphanumeric mode: up to 2 lines of 16 characters, h= 42 mm.
- 240 Vac power supply through 2-metre cable.
- Rear fixings M6, l= 9 mm, centre-to-centre distance 170x112 mm
Downloads
Downloads
Downloads
Communication Interfaces
| Code | Description | |
 | RS485C | (S1) Built-in RS485 interface (mounting and cable gland excluded). |
 | RS485OPTO | (S1) Built-in optoisolated RS485 interface (mounting and cable gland excluded). |
 | DF485 | (S1) RS485 bidirectional port for DFW series. |
 | OBRF2G4 | (S1) External 2.4 GHz radio module, cable l=3m. ABS IP65 protecting box, 3 m cable, power supply from weight indicator. Max. distance, in appropriate environmental and installation conditions: 45 m indoors, 140m outdoors. 39 configurable channels. |
Columns Supports Visors
| Code | Description | |
 | GLR100S | Wall support bracket, adjustable and inclinable. Painted steel housing. |
 | GLR100P | Support bracket for pole, adjustable. Painted steel housing. |
