Remote Displays

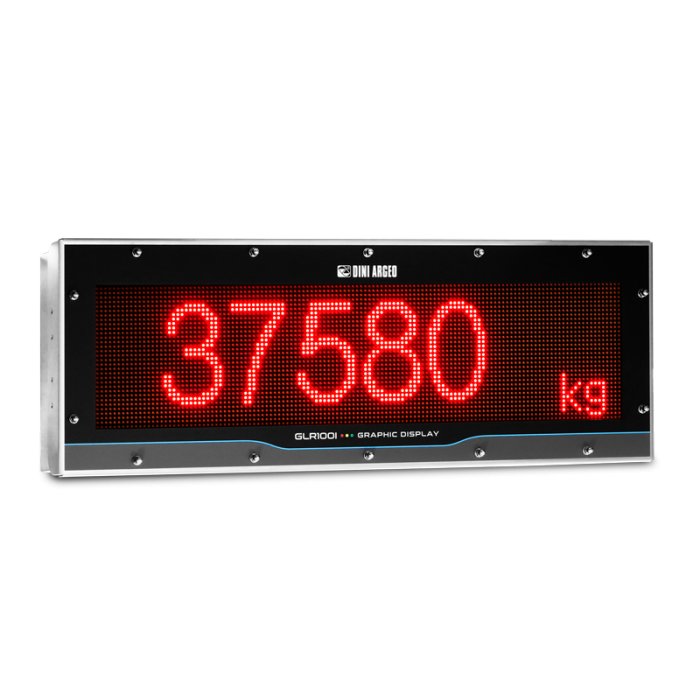

Alphanumeric Weight Repeater "GLR100I"In Stainless Steel And With IP68 Protection
In stock
SKU
GLR100I
Alphanumeric graphic repeater with RGB HIGH LUMINOSITY LED matrix, ideal for displaying weight and operational messages.
Summary Feature
- Stainless steel enclosure.
- IP68 protection rating.
- Suitable for outdoor use.
Downloads
Downloads
Downloads
Main Features
- Stainless steel enclosure, with IP68 protection rating. Suitable for outdoor use.
- RGB HIGH LUMINOSITY LED matrix display, 605x150 mm.
- Numerical mode: up to 6 digits, h= 110mm with metrological icons (stability, zeroing, NET, etc.)
- Alphanumeric mode: up to 2 lines of 16 characters, h= 42 mm.
- Power supply: 110-240Vac.
- Dimensions: 688x250x57mm.
- VESA Rear fixings (M6, 100x100mm).
Communication Interfaces
| Code | Description |
| RS485C | (S1) Built-in RS485 interface (mounting and cable gland excluded). |
| RS485OPTO | (S1) Built-in optoisolated RS485 interface (mounting and cable gland excluded). |
| DF485 | (S1) RS485 bidirectional port for DFW series. |
| RF2G4-TTL | (S1) Integrated 2.4 GHz radio frequency module, complete of TTL port. Max. functioning distance in appropriate environmental and installation conditions: 45m indoors, 140m outdoors. Up to 39 configurable channels. (RF2G4-TTL must be combined with another radio module). |
