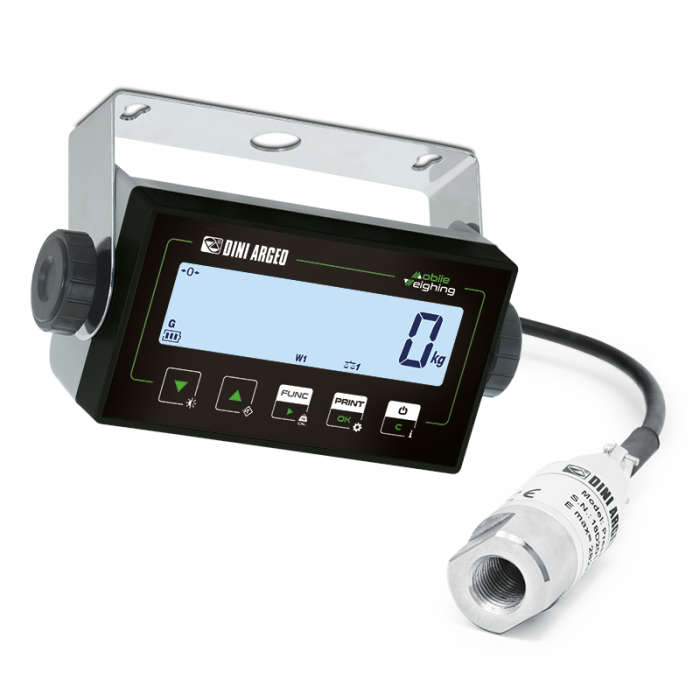

ELP Hydraulic Weighing Kit for Stackers and Electric Pallet Trucks
In stock
SKU
ELP
Weighing system to be applied to the hydraulic system of the pallet stacker and electric pallet truck, easy to install through a simple tee fitting. Ideal for weight checks, control of goods entering and leaving the warehouse, prevention of overloading of the pallet truck.
Summary Feature
- Maximum lifting capacity: up to 4,000 PSI / 280 BAR
- Resolution: from 1 kg
- Accuracy: ±0.5% to ±5% of capacity, min. ±20 kg*
Specification
COMPACT WEIGHT INDICATOR
- Digital specific weight indicator for weighing by means of hydraulic pressure sensor.
- ABS enclosure with 25mm backlit LCD display with 6 high contrast digits and icons to indicate active functions.
- Waterproof functional keypad with 5 keys.
- Power supply directly from the pallet truck (choice of voltage, depending on the pallet truck battery).
HYDRAULIC PRESSURE SENSOR
- 6 m shielded connection cable, with removable waterproof connector.
- Protection sheath, specific for contact with oils and lubricants.
- Nickel-plated steel structure.
- IP65 protection rating.
- Hydraulic connector: 1/4" BSP parallel.
- Operating temperature: -10° / +50° C
POWER SUPPLY OF CHOICE
According to the voltage present on the pallet truck, it is possible to choose the most suitable optional ALxxV5 power supply, with input from 18 to 72Vdc or from 40 to 160Vdc. The ALxxV5 power supply units can be installed inside the weight indicator (by ordering the S1 service) and can simultaneously power the OBTPRLT printer, optimising the wiring of the various components.
FIXING BRACKET
Complete with universal mounting bracket, vertically tilting and swiveling.
