Fork Lift Scale
Twin Forks Compact LTF Series Weighing Forks
In stock
SKU
LTF

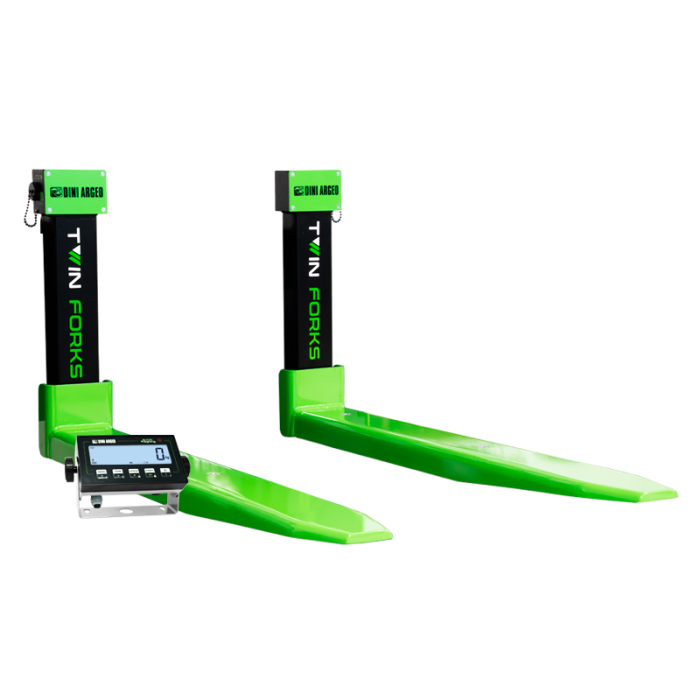

New weighing forks for forklifts complete with COMPACT indicator to read the weight directly from the cabin. The 5.0 Bluetooth technology with low consumption and rechargeable lithium-ion battery power ensure a long working life.
Summary Feature
- Painted steel structure.
- Weight of each fork: 115 kg approx.
- Length: 1162 mm.
- Protection rate: IP66.
Specification
WEIGHING FORKS FEATURES
- Painted steel structure.
- Weight of each fork: 115 kg approx.
- Length: 1162 mm.
- Protection rate: IP66.
- Operation with 4 Dini Argeo stainless steel load cells, IP68, low consumption. Capacity of each load cell: 3.000 kg.
- Max. admissible overload: 300% of the nominal capacity.
- Max horizontal inclination (tilting): +/- 2° (for legal for trade use only).
- Fork power supply through a rechargeable lithium battery with Instaplug technology and an autonomy of up to about 90 hours, or continuous use through additional batteries (optional, INSTAPLUGLKC code). Charger with EU, UK, US plug included as standard.
- Available in CE-M approved version (they need the relative ECEMLTF option).
COMPACT WEIGHT INDICATOR FEATURES
- Weight indicator in ABS with backlit LCD 25mm display with 6 high contrast digits and icons for showing the active functions.
- Fitted with fixing bracket for mounting in the cabin.
- Functional waterproof keypad with 5 keys.
- Easy to clean ABS IP68 enclosure, resistant to harsh and corrosive environments.
- Visual and audible overload indication.
- Auto-off (energy saving): 5 minutes adjustable or deactivable.
- Power supply directly from the forklift (optional power supply available)
- Optional printer complete with fixing bracket for mounting in the cabin.
INDICATOR FUNCTIONS
- From keypad:
- Backlight adjustment- Diagnostics
- Forks on/off
- Auto power off
- Zeroing
- Semi-automatic tare
- Presettable tare
- Printing
- Selectable function command
- Quick manual tare insertion
- Fork calibration.
