Fork Lift Scale
LTP Hydraulic Weighing Kit for Forklifts
In stock
SKU
LTP
Weighing system to be applied to the hydraulic system, easy to install on the forklift through a simple tee connector. Ideal for weight checks, control of goods entering and leaving the warehouse, prevention of overloading of the forklift and racking.
Summary Feature
- Maximum lifting capacity: up to 4,000 PSI / 280 BAR
- Resolution: from 5 kg
- Accuracy: ±0.5% to ±5% of capacity, min. ±20 kg*
Specification

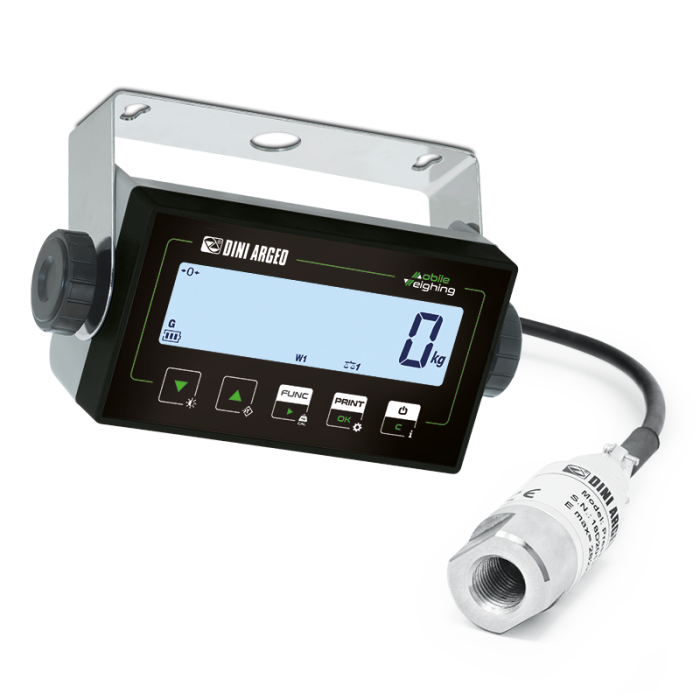

COMPACT WEIGHT INDICATOR
- Specific digital weight indicator for weighing through hydraulic pressure sensor.
- ABS case with 25 mm backlit LCD display with 6 high contrast digits and icons for showing the active functions.
- Functional waterproof keypad with 5 keys.
- Date and time board provided as standard.
- Direct power supply from the forklift (voltage at choice, depending on the battery of the forklift).
HYDRAULIC PRESSURE SENSOR
- 6 m shielded connection cable, with removable waterproof connector.
- Protection sheath, specific for contact with oils and lubricants.
- Nickel-plated steel structure.
- IP65 protection rating.
- Hydraulic connector: 1/4" BSP parallel.
- Temperature of use: -10° / +50° C
POWER SUPPLY UNIT OF CHOICE
Depending on the voltage present on the forklift, it is possible to choose the most suitable optional ALxxV5 power supply unit, with input from 18 to 72Vdc or from 40 to 160Vdc. The ALxxV5 power supply units can be installed inside the weight indicator (by ordering the S1 service) and can simultaneously power the OBTPRLT printer, optimising the wiring of the various components.
Fixing Bracket:
Equipped with universal mounting bracket, vertically tilting and swiveling.
