Fork Lift Scale
LTS Double Plate Weighing System for Forklifts
In stock
SKU
LTS

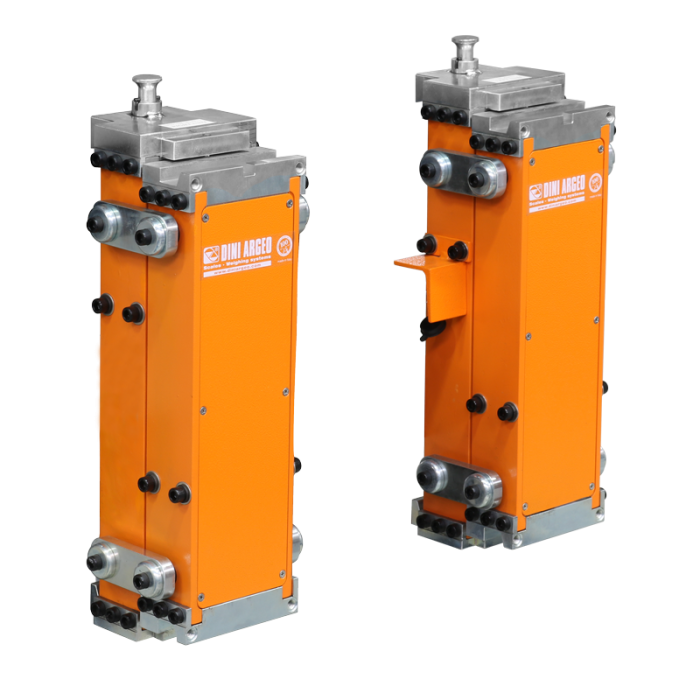

Double plate weighing system for forklifts with DIN15173 - FEM class III standard fixing. The whole is made of two weighing plates and a junction box. Sturdy, handy and simple to install, this system allows to weigh during load and unload operations, while using the forklift.For internal use.
Summary Feature
- Weighing plates with extra thick painted steel bearing structure
- Load cells protection against accidental strikes
- Integrated protection system against overloads and accidental strikes
Main Features
- Weighing plates with extra thick painted steel bearing structure.
- Load cells protection against accidental strikes.
- Extremely compact system, in order not to reduce the operator's visibility.
- S type load cells: sensitivity 2 mV/V, maximum power supply 15Vdc.
- Single plate dimensions: 585x265mm, only 152mm depth.
- Total weight of the 2 plates: 100kg aproximately.
- Single plate packaging dimensions: 270x280x640mm.
- Single plate packaging weight: 10kg aproximately.
- Maximum forks lenght: 1,30m.
- Hermetic junction box.
- Standard cable fitted with connectors for rapid linkage.
- Maximum opening of the plates: 500mm aproximately.
- Precision: +/- 0.1% of the capacity.
- Maximum horizontal declivity (tilt): +/- 2° with the same precision features.
- Maximum overload allowed: 300%.
- Integrated protection system against overloads and accidental strikes.
- Wide range of connectable indicators and wireless solutions.
Communication Interfaces
| Code | Description |
| OBRF2G4 | (S1) External 2.4 GHz radio module, cable l=3m. ABS IP65 protecting box, 3 m cable, power supply from weight indicator. Max. distance, in appropriate environmental and installation conditions: 45 m indoors, 140m outdoors. 39 configurable channels. |
| OBRF2G4-USB | External 2.4 GHz radio frequency module, USB cable l=1m. Power supply directly from the USB port. Max. functioning distance, in appropriate environmental and installation conditions: 45 m indoors, 140 outdoors. 39 configurable channels. |
| WIFITD-3 | (S1) Built-in WI-FI interface. For wireless connection (through access point) to the company computer system. |
| ALMEM-1 | (S1) Alibi memory (fiscal memory, max 120.000 weighs) for approved weight transmission to PC/PLC or data recording on MMC/USB. Built-in real time clock to print the date/time with PCB, screw terminal, plastic box and UL-marked labels. If applicable, it requires FW 05.00.02 or higher. Not compatible with weight repeaters. |
| DFCLK | (S1) Real time clock for printing/displaying of date and time. With UL marked PCB, screw terminal, plastic box and labels (if applicable). |
