Fork Lift Scale

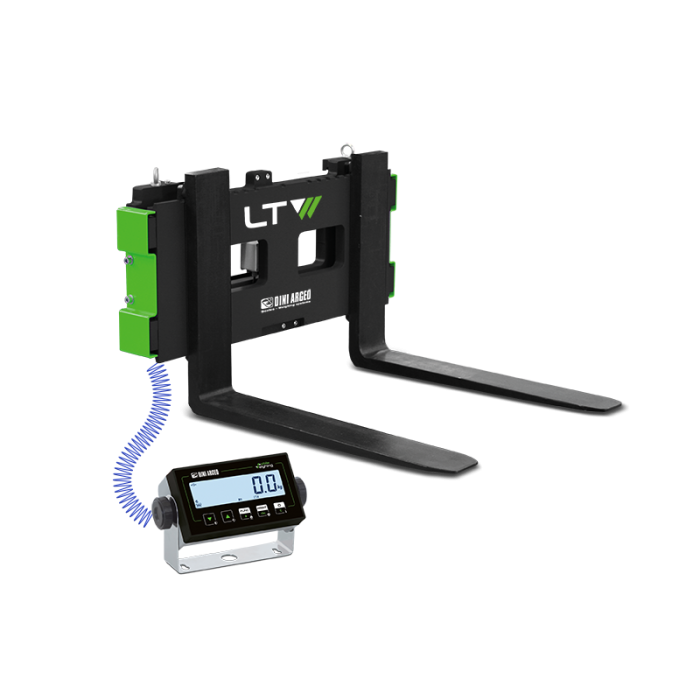

LTW Compact Fork Holder Plate with Integrated Weighing System
In stock
SKU
LTW
Weighing plate for forklift, with fixing rail DIN15173 - FEM class II, to transform a normal forklift into a mobile scale. Fitted with COMPACT weight indicator in the cabin, versatile and easy to use. Available also in approved version for legal-for-trade use.
Summary Feature
- Plate dimensions 910 x 407 x 110 mm
- Weight 184 kg
- Max. fork length: 1100 mm
- Max. center of gravity displacement: 55 mm
- Plate supporting structure made of thick steel
- Hermetic junction box
- Extensible cable as standard (length 5 m)
Communication Interfaces
| Code | Description |
| OBRF2G4 | (S1) External 2.4 GHz radio module, cable l=3m. ABS IP65 protecting box, 3 m cable, power supply from weight indicator. Max. distance, in appropriate environmental and installation conditions: 45 m indoors, 140m outdoors. 39 configurable channels. |
| OBRF2G4-USB | External 2.4 GHz radio frequency module, USB cable l=1m. Power supply directly from the USB port. Max. functioning distance, in appropriate environmental and installation conditions: 45 m indoors, 140 outdoors. 39 configurable channels. |
| BLTH-4 | (S1) Built-in bluetooth interface. For wireless connection of the scale to tablets, smartphones, laptops or barcode scanners. Attention: this interface is not suitable for Master-Slave systems. |
Specification
COMPACT WEIGHT INDICATOR FEATURES
- Weight indicator in ABS with backlit LCD 25mm display with 6 high contrast digits and icons for showing the active functions.
- Fitted with fixing bracket for mounting in the cabin.
- Functional waterproof keypad with 5 keys.
- Easy to clean ABS IP68 enclosure, resistant to harsh and corrosive environments.
- Visual and audible overload indication.
- Auto-off (energy saving): 5 minutes adjustable or deactivable.
- Power supply directly from the forklift (optional power supply available)
- Optional printer complete with fixing bracket for mounting in the cabin
DISPLAY ON THE WEIGHING PLATE (Bluetooth version)
- Backlit 25mm LCD display with 6 high-contrast digits and icons for indicating active functions.
- ABS IP68 case, easy to clean and resistant in harsh and corrosive environments.
- Communication with the weight indicator in the cabin through Bluetooth.
- Power supply through internal rechargeable battery, with 60h working autonomy and external battery charger provided as standard.
