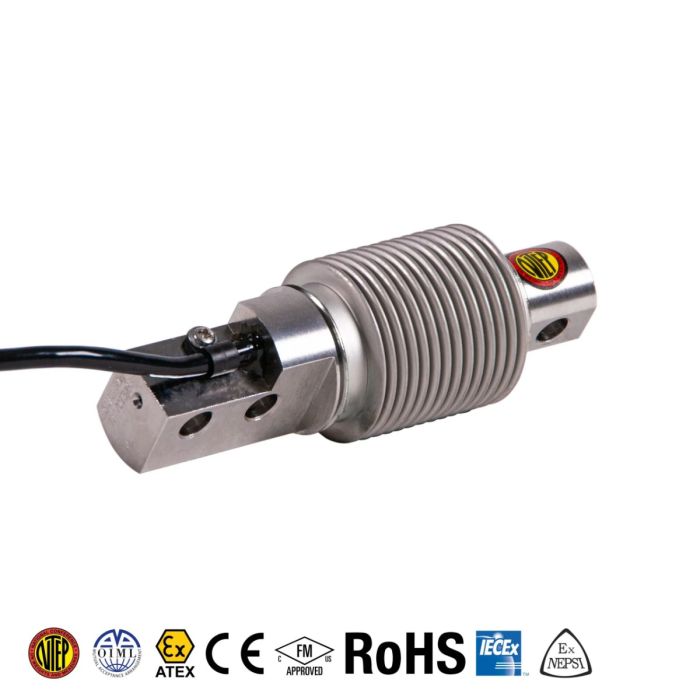

563RS Single Ended Beam Load Cell
In stock
SKU
563RS
The time-tested design of the 563RS offers a high degree of reliability and versatility. The IP68 washdown water- and corrosion-resistant stainless steel construction provides the highest degree of ingress protection for most circumstances.
Summary Feature
- Material: Stainless steel
- Full Scale Output: 2mV/V ± 0.25%
- IP Rating: IP68
- OIML: 10kg-50kg: OIML MAA C6, Y=30000; 100kg-500kg: OIML MAA C4, Y=30000
Specification
| Rated Capacities | 5kg, 10kg, 20kg, 30kg, 50kg, 100kg, 200kg, 350kg, 500kg |
| Full Scale Output | 2mV/V ± 0.25% |
| Zero Balance | Cap. ≤20kg: ± 0.05mV/V / Cap. >20kg: ± 0.02mV/V |
| Deflection at Emax | 0.27mm-0.33mm |
| Non-linearity | < ±0.017% |
| Repeatability | < ±0.017% |
| Hysteresis Error | < ±0.017% |
| Creep in 30 minutes | < ±0.023% |
| Input Resistance | 400Ω ± 20Ω |
| Output Resistance | 350Ω ± 3Ω |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2GΩ (50V DC) |
| Temperature Effect on Sensitivity | < ±0.0012% of Cn/k |
| Temperature Effect on Zero Balance | < ± 0.0040% of Cn/k |
| Compensated Temperature Range | –10°C to 50°C/14°F to 122°F |
| Service Temperature Range | –30°C to 70°C/-20°F to 160°F |
| Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Welded seal |
| IP Rating | IP68 |
Interchangeable
| Manufacturer | Model |
| Cardinal | CB6 |
| Coti Global | CG-Z6 |
| Flintec | SB8 |
| HBM | Z6 |
| Mettler Toledo | MTB |
| Rice Lake | RLHBB |
| Vishay Celtron | HBB |
| Vishay Revere Transducers | SHB |
| Vishay Tedea-Huntleigh | 355 |
