Single Ended Shear Beams

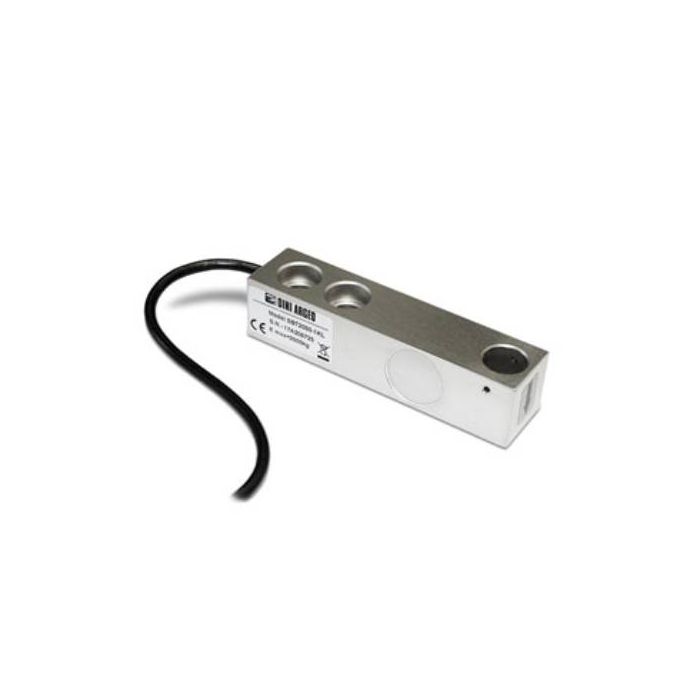

"SBT-1KL" Series Shear Beam Nickel-Plated Load Cells, from 500kg to 2500kg
In stock
SKU
SBT-1KL
Dini Argeo nickel-plated approved load cells, with low-power 1000 Ohm output resistance for mobile battery applications. The measures are compatible with the main shear beam load cells present on the market. They are suitable for creating CE-M approved scales with 4 load cells or for weighing conveyors, tanks and hoppers, thanks to their accessories.
Summary Feature
- CAPACITIES (kg): 500, 1000, 2000, 2500.
- OIML R60 approved, NTEP.
- Nickel-plated steel. IP67 protection.
- Output Resistance 1000 Ohm.
Main Features
- C3 PRECISION CLASS
- NICKEL-PLATED CONSTRUCTION
- POTTED SEAL, IP67 PROTECTION
- MAX. CAPACITIES FROM 500 TO 2500 kg
- SHIELDED CONNECTION CABLE
- TEST CERTIFICATE AVAILABLE UPON REQUEST
Main Certification
- OIML R60
- NTEP
- Australian legal for trade certificate of approval (NMI S839)
Specification
| Minimum load cell verification interval | Vmin = EMax / 10.000 |
| Maximum number of verification intervals nLC | 3000 |
| Combined Error | 0,017% of Full Scale Output (F.S.) |
| Nonlinearity | ± 0.02% FS |
| Hysteresis | ± 0.02% FS |
| Repeatability | ± 0.02% FS |
| Full Scale Output | 2mV/V +/- 0,5% |
| Zero balance | ± 1% FS |
| Compensated Temperature Range | -10°C/+50°C |
| Operating Temperature Range | -20°C/+60°C |
| Creep error after 30 minutes | 0,02% F.S. |
| Maximum tolerated excitation voltage | 15 Vdc |
| Input Resistance | 1085 ± 10 Ohm |
| Output Resistance | 1000 ± 5 Ohm |
| Insulation Resistance | >5000 MOhm |
| Safe Overload | 120% F.S. |
| Ultimate Overload | 300% F.S. |
| 6-wire shielded cable | 3,5m long, 5 mm diameter |
