563YHFK Single Ended Beam Load Cell
In stock
SKU
563YHFK

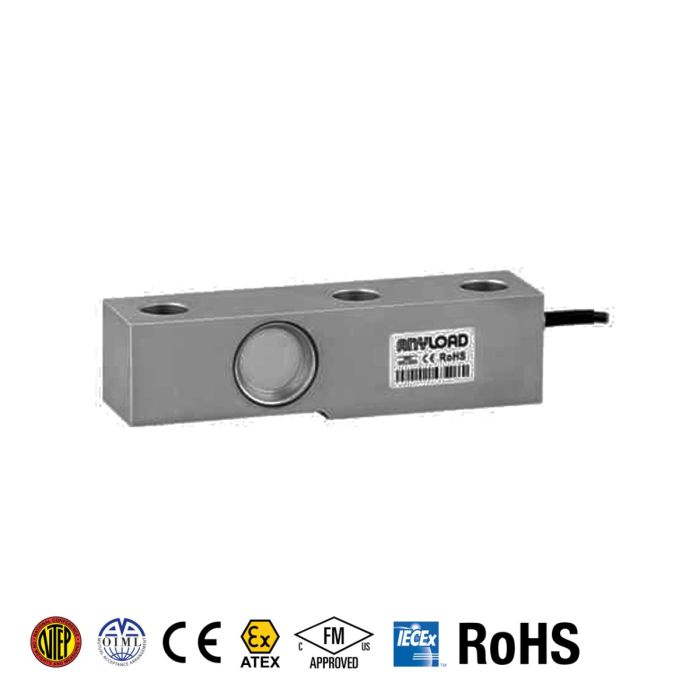

The 563YHFK is an interchangeable (Kelba KA125N up to KA10000N) lower and medium-capacity single-ended beam load cell with IP67 water resistance.
Summary Feature
- Material: Alloy steel
- Full Scale Output: 2.2mV/V ± 0.25% or 2.2mV/V ± 0.05%
- IP Rating: IP67
- OIML: 500kg-2.5t: OIML MAA C5, Y=26000; 5t-10t: OIML MAA C6, Y=8500
- CE, RoHS and Ex(NEPSI) certified
Specification
| Rated Capacities | 125kg, 250kg, 500kg, 1t, 2.5t, 5t, 10t |
| Full Scale Output 500kg and 10t | 2.2mV/V ± 0.25% |
| Full Scale Output 1t-5t | 2.2mV/V ± 0.05% |
| Zero Balance | ± 0.02mV/V |
| Non-linearity | < ±0.017% |
| Repeatability | < ±0.017% |
| Hysteresis Error | < ±0.017% |
| Creep in 30 minutes | < ±0.023% |
| Input Resistance | 380Ω ± 15Ω |
| Output Resistance | 350Ω ± 3Ω |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2GΩ (50V DC) |
| Temperature Effect on Sensitivity | < ±0.0012% of Cn/k |
| Temperature Effect on Zero Balance | < ± 0.0040% of Cn/k |
| Compensated Temperature Range | –10°C to 50°C/14°F to 122°F |
| Service Temperature Range | –30°C to 70°C/-20°F to 160°F |
| Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Environmentally sealed |
| IP Rating | IP67 |
Interchangeable
| Manufacturer | Model | ANYLOAD Part Number |
| Kelba | KA125N | 563YHFK-125kg |
| KA250N | 563YHFK-250kg | |
| KA500N | 563YHFK-500kg | |
| KA1000N | 563YHFK-1t | |
| KA2500N | 563YHFK-2.5t | |
| KA5000N | 563YHFK-5t | |
| KA10000N | 563YHFK-10t |
