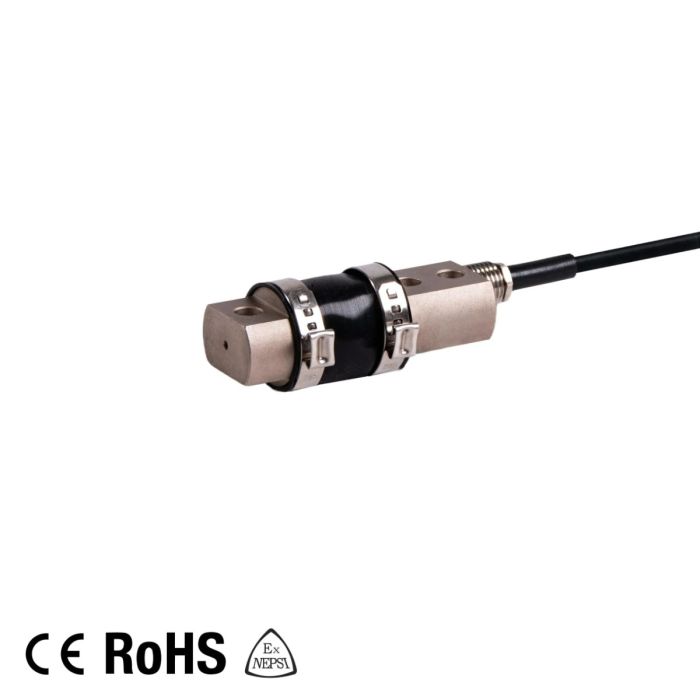

563SH Single Ended Beam Load Cell
In stock
SKU
563SH
The 563SH is a compact, popular single-ended beam load cell. The alloy steel IP65 water-resistant construction with 150% safe overload provides a reliable weighing solution for low-capacity applications.
Summary Feature
- Material: Alloy steel
- Full Scale Output: 3mV/V ± 10%
- IP Rating: IP65
- CE, RoHS and Ex(NEPSI) certified
Specification
| Rated Capacities | 25lb, 50lb, 100lb, 150lb, 200lb, 250lb, 300lb, 500lb |
| Full Scale Output | 3mV/V ± 10% |
| Zero Balance | ± 0.02mV/V |
| Combine Error | 0.03% of full scale |
| Non-linearity | < ± 0.030% |
| Repeatability | < ± 0.020% |
| Hysteresis Error | < ± 0.020% |
| Creep in 30 minutes | < ± 0.030% |
| Input Resistance | 400Ω ± 20Ω |
| Output Resistance | 350Ω ± 3Ω |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2GΩ (50V DC) |
| Temperature Effect on Sensitivity | < ±0.0012% of Cn/k |
| Temperature Effect on Zero Balance | < ± 0.0040% of Cn/k |
| Compensated Temperature Range | –10°C to 50°C/14°F to 122°F |
| Service Temperature Range | –30°C to 70°C/-20°F to 160°F |
| Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Environmentally sealed |
| IP Rating | IP65 |
Interchangeable
| Manufacturer | Model |
| Artech | 50210 |
| Rice Lake | RL50210 |
| Vishay Revere Transducers | 5503 |
| Vishay Sensortronics | 60040 |
| Coti Global | CG-60040 |
